SKU:
BP 186721AZFB
$ 1.137,88
1-2 weeks delivery time
-
+
The Lopolight 201-021-FB-B is a horizontal white navigation light with a flat base POM mounting system and black anodized aluminum body. It includes a 0.7 meter shielded marine-grade cable, providing 3 nautical miles of visibility for vessels sized 12-20 meters. The light operates at 10-32VDC, draws 3.6 W, consumes 300 mA at 12VDC and 148 mA at 24VDC, weighs 0.42 kg, and is IP68 rated.
- Description
- Ask a Question
-

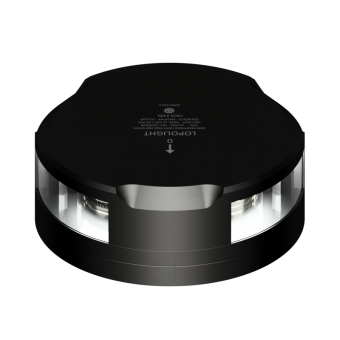

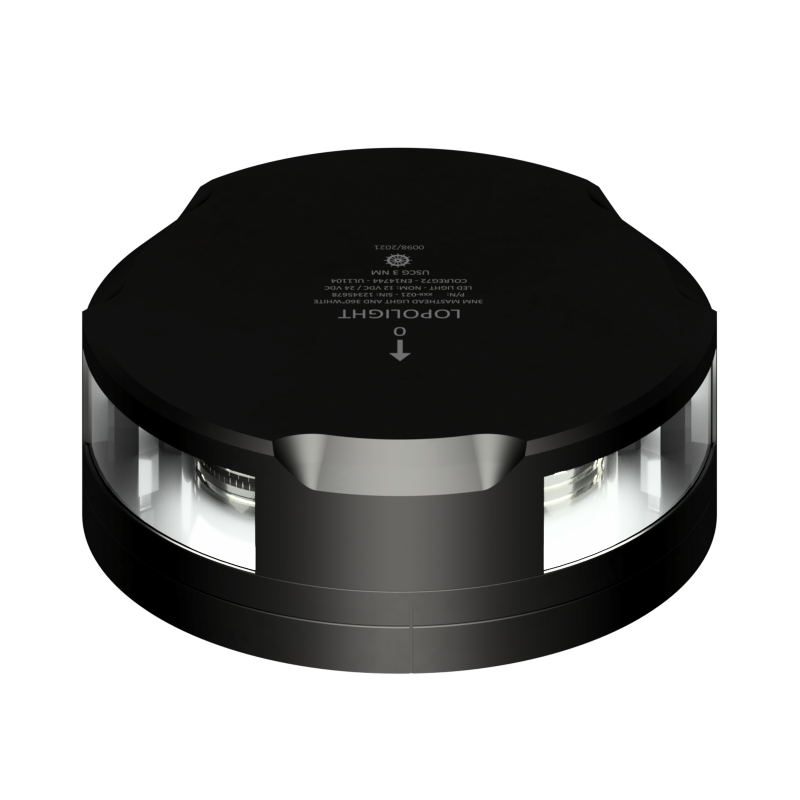

Lopolight 201-021-FB-B - Navigation Light 3NM Masthead/360° White, Black w/FB Base
This navigation light features a horizontal mount with a flat base (FB) POM mounting system and a black anodized aluminum body. Supplied with a 0.7 meter shielded marine-grade cable, it delivers 3 nautical miles of white light visibility for vessels sized 12-20 meters.
- Article Number: 186721AZFB
- Supplier Article Code: 201-021-FB-B
- EAN Code: 5704438043541
- Light Color: White
- Mounting: Horizontal, FB (flat base) POM mounting system
- Dimensions (metric): Ø92.5 mm x 36 mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Visibility Range: 3 nautical miles
- Certification: DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Materials: Black anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 3.6 W
- Current Consumption: 300 mA @ 12VDC, 148 mA @ 24VDC
- IP Rating: IP68
- Connection: 0.7 m cable
- Operating Temperature: -25°C to 55°C
- Minimum Feed Wire Gauge: 0.5 mm² (AWG22)
- Weight: 0.42 Kg (14.97 Oz)
- Suitable Vessel Size: 12-20M
- Included in Package: Navigation light, precabled with 0.75 m cable, installation guide
- UPC Code: 879343043674
- Packaging Unit: Piece
-
