SKU:
BP 201-021-FB 6M
$ 1.261,50
1-2 weeks delivery time
-
+
The Lopolight 201-021-FB 6M is a 3NM white masthead navigation light with flat base mounting and 6-meter pre-cabled connection. It provides reliable 3NM visibility for medium-sized vessels, operates at 10-32VDC, consumes 300mA @ 12VDC and 148mA @ 24VDC, and is DNV certified.
- Description
- Ask a Question
-

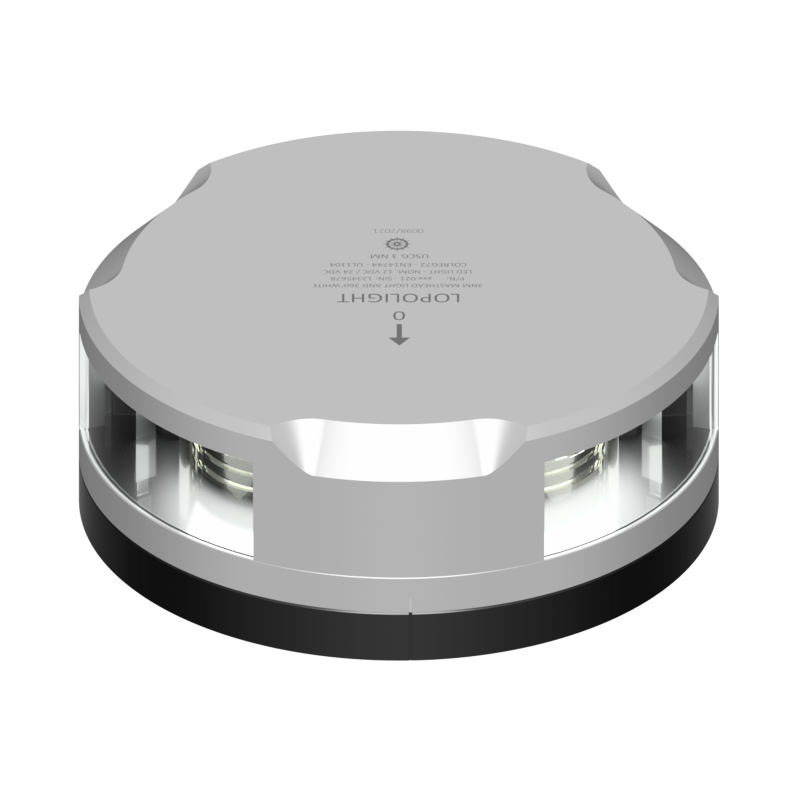

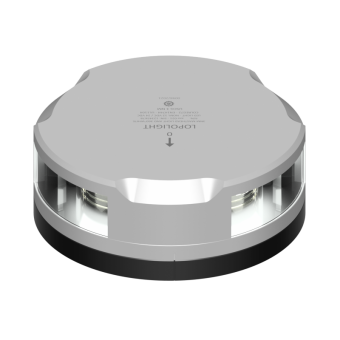

Lopolight 201-021-FB 6M - Navigation Light 3NM Masthead/360° White, Silver W/FB Base
This navigation light features a flat base (FB) mounting system and comes pre-cabled for easy installation, providing reliable 3NM visibility for medium-sized vessels.
- Number: 201-021-FB 6M
- Light Color: White
- Dimensions (metric): Ø92,5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Included in Package: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 3.6 W
- Connection: 0.7m cable
- Current Consumption (mA @ 12VDC): 300
- Current Consumption (mA @ 24VDC): 148
- Vessel Size: 12-20M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.66 Kg / 23.25 Oz
- Horizontally mounted with 6m cable
- FB (flat base) POM mounting system
- EAN: 5704438043565
- UPC Code: 879343043698
-
