SKU:
BP 186720AFB
$ 852,21
1-2 weeks delivery time
-
+
The Lopolight 201-020-FB is a horizontal white navigation light with a flat base POM mounting system and a silver anodized aluminum body. Supplied with a 0.7 meter shielded marine-grade cable, it offers 2 nautical miles of visibility for vessels under 12 meters, operates at 10-32VDC with 225 mA at 12VDC and 156 mA at 24VDC, and has a power draw of 3 W. The light is IP68 rated, weighs 0.46 kg, and comes with installation accessories.
- Description
- Ask a Question
-

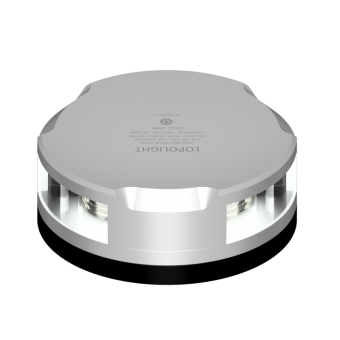

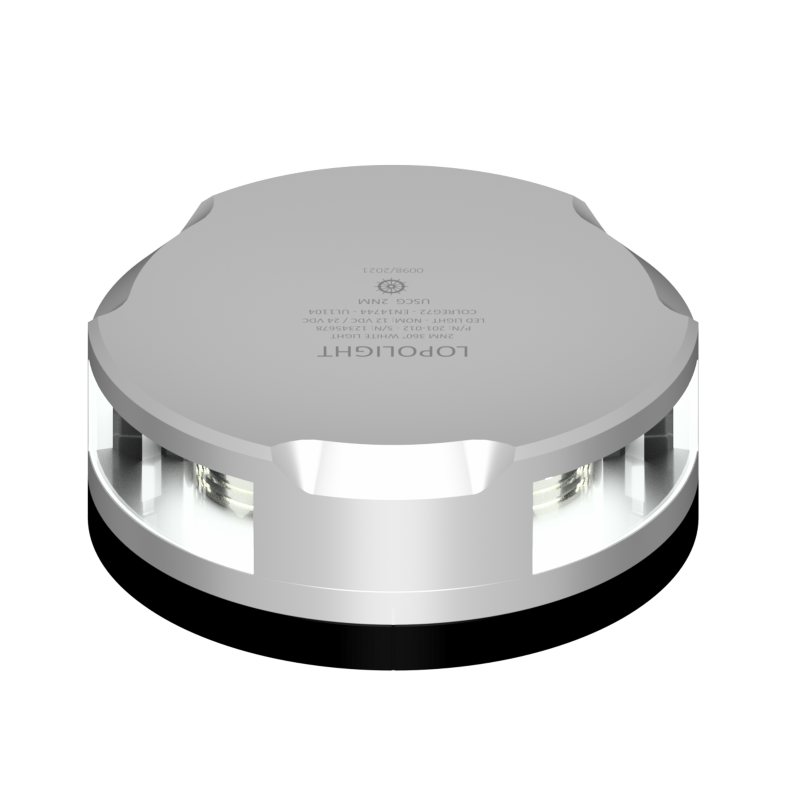

Lopolight 201-020-FB - Navigation Light 2NM Masthead/360° White, Silver w/FB Base
This navigation light features a horizontal mount with a flat base (FB) POM mounting system and comes with a 0.7 meter shielded marine-grade cable. Its silver anodized aluminum body provides durable protection, offering clear 360° white light visibility for vessels under 12 meters.
- Article Number: 186720AFB
- Supplier Article Code: 201-020-FB
- Light Color: White
- Mounting: Horizontal with FB (flat base) POM mounting system
- Dimensions (metric): Ø92.5 mm x 36 mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Visibility Range: 2 nautical miles
- Intensity: Not specified
- Certification: DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Materials: Silver anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 3 W
- Current Consumption: 225 mA @ 12VDC, 156 mA @ 24VDC
- IP Rating: IP68
- Connection: 0.7m shielded cable
- Operating Temperature: -25°C to 55°C
- Minimum Feed Wire Gauge: 0.5 mm² (AWG22)
- Weight: 0.46 Kg (16.09 Oz)
- Suitable Vessel Size: Under 12M
- Included in Package: Navigation light, precabled with 0.75m cable, installation guide
- EAN: 5704438043510
- UPC Code: 879343043643
- Packaging Unit: Piece
-
