SKU:
BP 186720AZFB
$ 852,21
1-2 weeks delivery time
-
+
The Lopolight 201-020-FB-B is a horizontal white navigation light with a flat base POM mounting system and black anodized aluminum body. It includes a 0.7 meter shielded marine-grade cable, providing 2 nautical miles of visibility for vessels under 12 meters. The light operates at 10-32VDC, consumes 225 mA at 12VDC and 156 mA at 24VDC, draws 3 W, weighs 0.46 kg, and has IP68 protection.
- Description
- Ask a Question
-

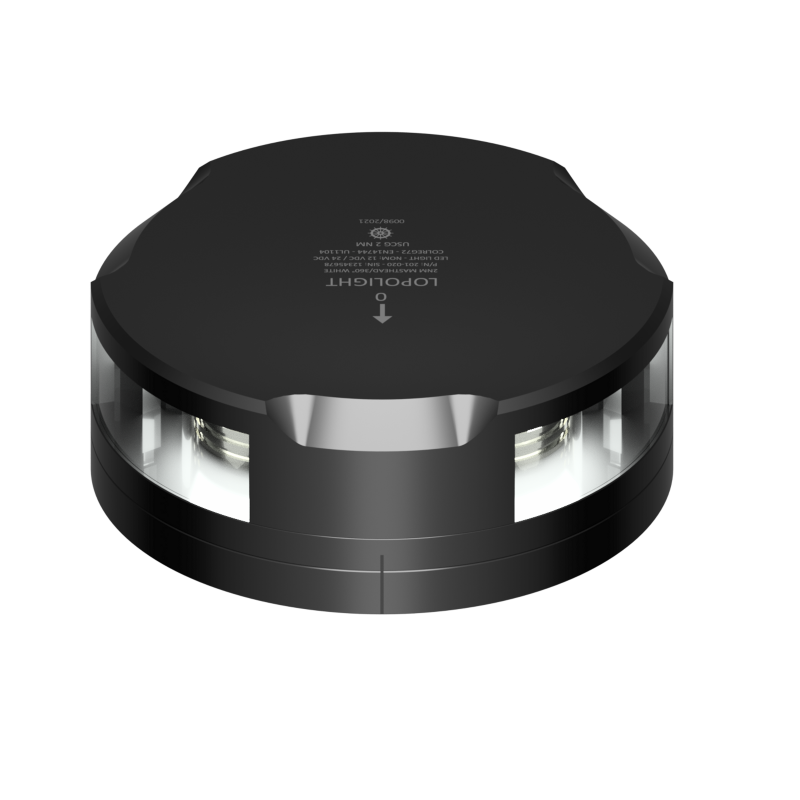

Lopolight 201-020-FB-B - Navigation Light 2NM Masthead/360° White, Black w/FB Base
This horizontally mounted navigation light uses a flat base (FB) POM mounting system with a black anodized aluminum finish. Supplied with a 0.7 meter shielded marine-grade cable, it provides reliable 360° white light visibility for vessels under 12 meters.
- Article Number: 186720AZFB
- Supplier Article Code: 201-020-FB-B
- Light Color: White
- Mounting: Horizontal with FB (flat base) POM mounting system
- Dimensions (metric): Ø92.5 mm x 36 mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Visibility Range: 2 nautical miles
- Intensity: Not specified
- Certification: DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Materials: Black anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 3 W
- Current Consumption: 225 mA @ 12VDC, 156 mA @ 24VDC
- IP Rating: IP68
- Connection: 0.7m shielded cable
- Operating Temperature: -25°C to 55°C
- Minimum Feed Wire Gauge: 0.5 mm² (AWG22)
- Weight: 0.46 Kg (16.09 Oz)
- Suitable Vessel Size: Under 12M
- Included in Package: Navigation light, precabled with 0.75m cable, installation guide
- EAN: 5704438043527
- UPC Code: 879343043650
- Packaging Unit: Piece
-
