SKU:
BP 201-015ST-PRO-I-EX
$ 3.512,33
1-2 weeks delivery time
-
+
The Lopolight 201-015ST-PRO-I-EX is a 360° double green navigation light with ice-class de-icing, certified for ATEX Zones 1 & 2. It mounts horizontally on a 400-037 EX/MIL aluminum base with side cable direction and HDPE base plate. The light operates at 10-32VDC, consumes 160mA @ 12VDC and 107mA @ 24VDC, and provides 2 nautical miles of visibility for vessels up to 50M.
- Description
- Ask a Question
-

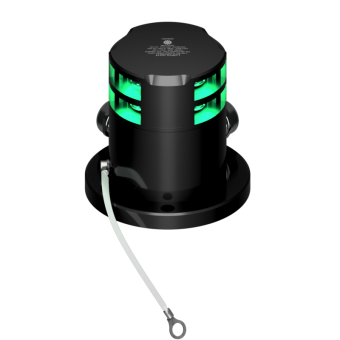

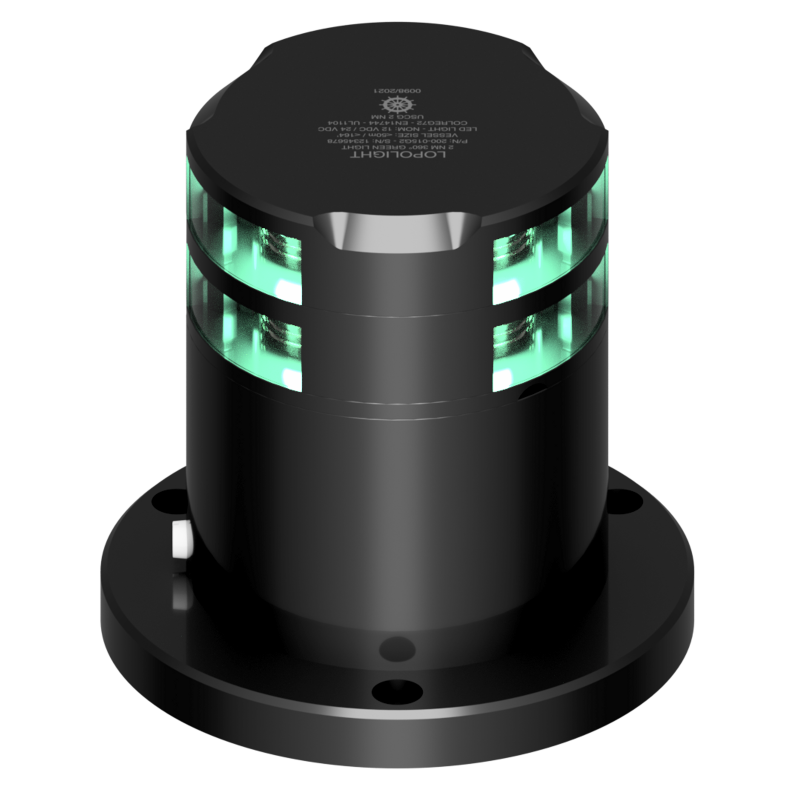

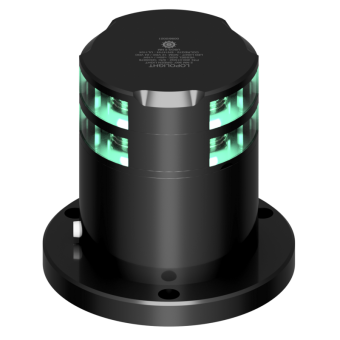

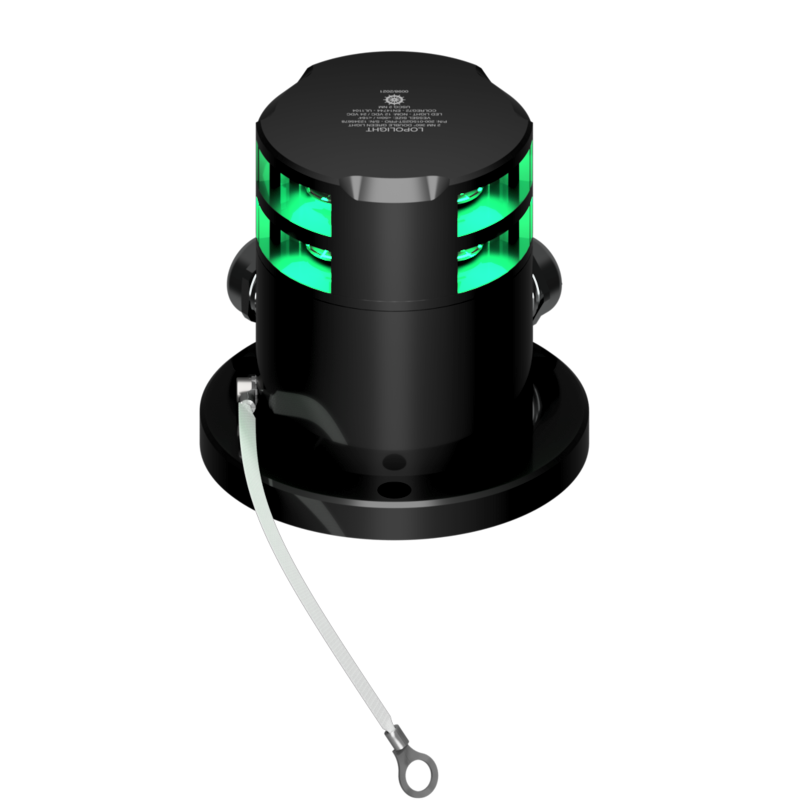

Lopolight 201-015ST-PRO-I-EX - Navigation Light 2NM 360° Green, Double, Black, EX Zone 1&2, Ice-Class
This high-performance navigation light is designed for safe operation in hazardous environments and icy conditions, ensuring reliable visibility and robust construction for vessels up to 50 meters.
- Number: 201-015ST-PRO-I-EX
- Light Color: Green
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2 W
- Connection: Plug connector
- Current Consumption (mA @ 12VDC): 160
- Current Consumption (mA @ 24VDC): 107
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- EAN: 5704438041943
- UPC Code: 879343042073
- Certified for use in ATEX Zone 1 & 2
- Built-in De-icing function
- Horizontally mounted on 400-037 EX/MIL alu base
- Cable direction: side, incl. HDPE base plate
- No cable glands or ground strap included
-
