SKU:
BP 201-015ST-PRO-EX
$ 2.508,82
1-2 weeks delivery time
-
+
The Lopolight 201-015ST-PRO-EX is a 360° double green navigation light for hazardous areas, certified for ATEX Zones 1 & 2. It mounts horizontally on a 400-037-B aluminum base with side cable direction and HDPE base plate. The light operates at 10-32VDC, consumes 160mA @ 12VDC and 107mA @ 24VDC, and provides visibility of 2 nautical miles, suitable for vessels under 12M to 50M.
- Description
- Ask a Question
-

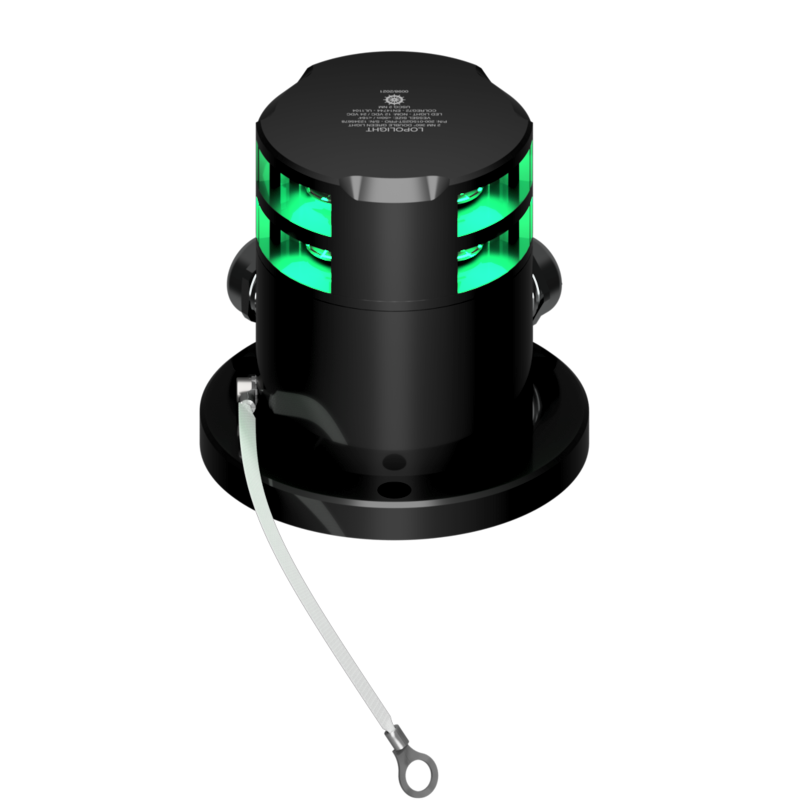

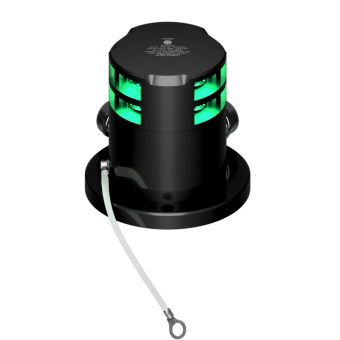

Lopolight 201-015ST-PRO-EX - Navigation Light 2NM 360° Green, Double, Black, EX Zone 1&2
Specially engineered for hazardous areas, this EX-certified green navigation light provides full 360° visibility up to 2 nautical miles. It is ideal for ATEX Zone 1 & 2 environments while maintaining robust performance on various vessels.
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- EX Zone: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Mounting: Horizontal on 400-037-B aluminum base (IP68)
- Cable direction: Side, includes HDPE base plate
- No cable glands or ground strap included
- Product number: 201-015ST-PRO-EX
- Light color: Green
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Light intensity: 2W power draw
- Visibility range: 2nm
- Included in package: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32VDC
- EAN: 5704438041950
- UPC Code: 879343042080
- IP rating: IP68
- Current consumption: 160 mA @ 12VDC, 107 mA @ 24VDC
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.3 Kg / 45.85 Oz
- Suitable vessel sizes: Under 12M, 12-20M, 20-50M
-
