SKU:
BP 201-015-PRO-EX
$ 1.558,43
1-2 weeks delivery time
-
+
The Lopolight 201-015-PRO-EX is a 360° green navigation light certified for ATEX Zones 1 & 2, intended for hazardous environments. It mounts horizontally on a 400-037-B aluminum base with a side cable direction and HDPE base plate. With black hard coat anodized aluminum, it operates at 10-32VDC, consumes 160mA @ 12VDC and 107mA @ 24VDC, and provides visibility of 2 nautical miles. It is suitable for vessels under 12M to 50M.
- Description
- Ask a Question
-

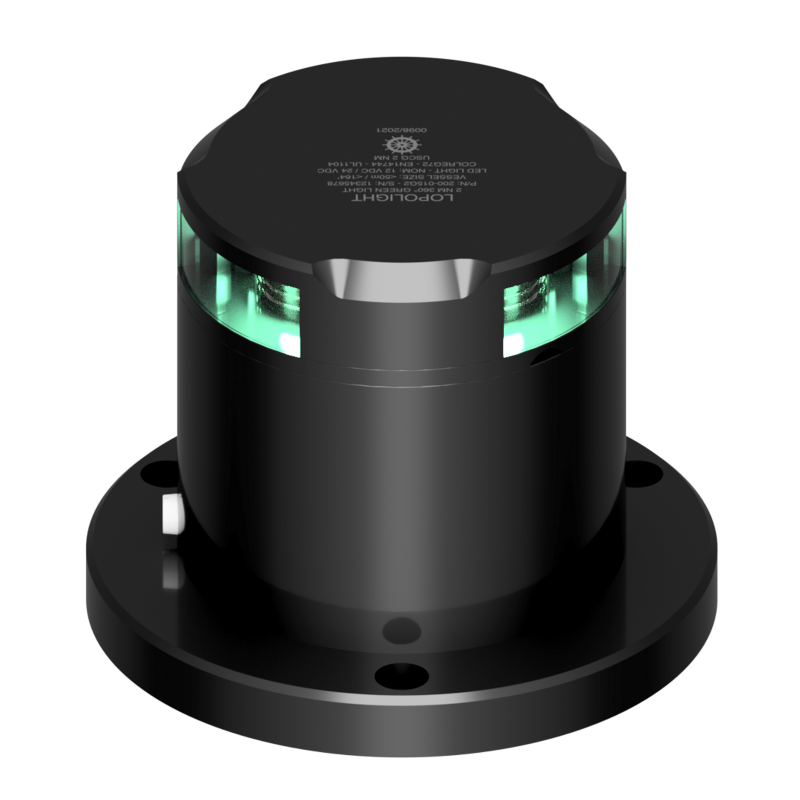

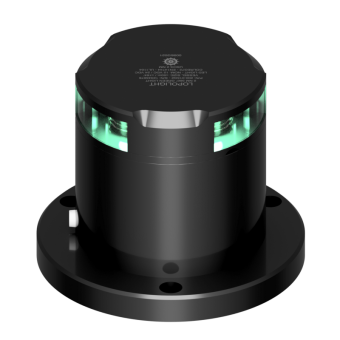

Lopolight 201-015-PRO-EX - Navigation Light 2NM 360° Green, Black, EX Zone 1&2
Certified for hazardous ATEX Zones 1 & 2, this 360° green navigation light is designed for safe operation in explosive environments. It mounts horizontally on a 400-037-B aluminum base with IP68 rating, featuring a side cable direction and HDPE base plate.
- Finish: Black hard coat anodized aluminum 50µ
- Mounting: Horizontal on 400-037-B aluminum base
- Cable: Side direction, HDPE base plate included; no cable glands or ground strap
- Product Number: 201-015-PRO-EX
- Light Color: Green
- Dimensions (metric): Ø92.5mm x 103.5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved Standards: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Light Intensity: >5.4cd
- Visibility: 2 nautical miles
- Included in Package: 1 navigation light, installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2W
- Current Consumption: 160mA @ 12VDC, 107mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Minimum Feed Wire: 0.5mm² AWG22
- Vessel Size: Under 12M, 12-20M, 20-50M
- EAN: 5704438041110
- UPC Code: 879343041243
-
