SKU:
BP 186715AZ180CD
$ 1.084,24
1-2 weeks delivery time
-
+

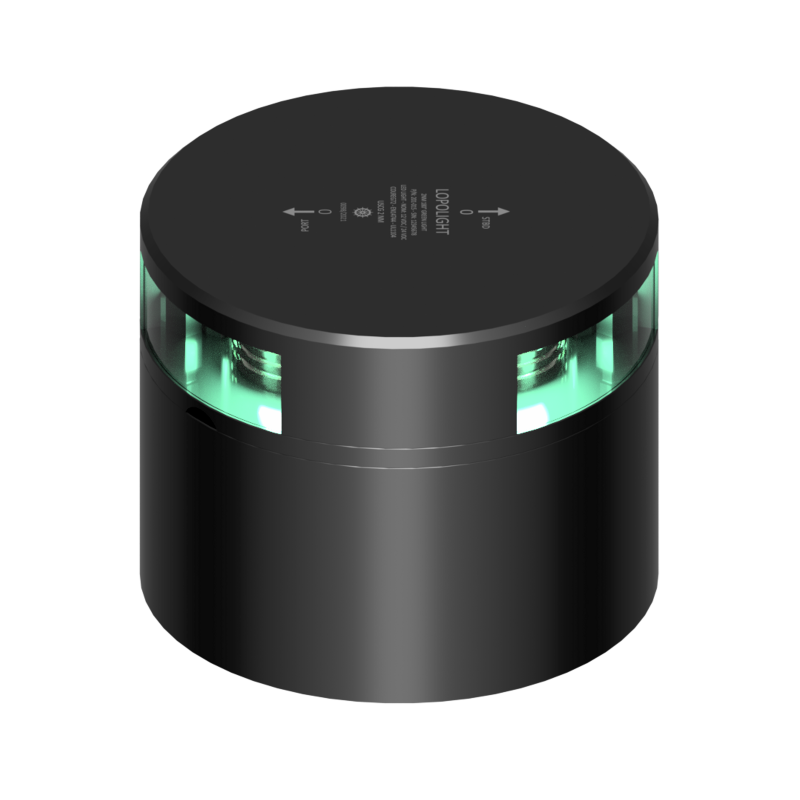

The Lopolight 201-015-B-180-CD is a horizontal green navigation light with a robust black anodized aluminum base, IP68 rating, and a plug connector with M16 gland cable down for easy installation. It provides 2 nautical miles of visibility, meets DNV certification, and is suitable for vessels under 50 meters. The light has dimensions of Ø92.5 mm x 74.5 mm, current consumption of 182 mA at 12VDC, and 176 mA at 24VDC, and operates within 10-32VDC.
- Description
- Ask a Question
-
Lopolight 201-015-B-180-CD - Navigation Light 2NM 180° Green, Single, Black w/Connector & Aluminum Base CD
This navigation light is designed for horizontal mounting and features a robust black anodized aluminum base with an IP68 rating. It comes equipped with an M16 gland cable down and a plug connector for easy installation, providing reliable green light for various vessel sizes.
- Article Number: 186715AZ180CD
- Supplier Article Code: 201-015-B-180-CD
- Light Color: Green
- Mounting: Horizontal on aluminum base
- Dimensions (metric): Ø92.5mm x 74.5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Intensity: >5.4cd
- Visibility Range: 2 nautical miles
- Certification: DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Materials: Black anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Weight: Not specified
- Current Consumption: 182 mA @ 12VDC, 176 mA @ 24VDC
- Operating Voltage: 10-32VDC
- Operating Temperature: -25°C to 55°C
- IP Rating: IP68
- Connection: Plug connector with cable down M16 glands
- Included in Package: 1 Navigation light
- Suitable Vessel Size: Under 12M, 12-20M, 20-50M
- EAN: 5704438045187
- UPC Code: 879343045319
- Packaging Unit: Piece
-
