SKU:
BP 201-014-PRO-I-EX
$ 2.181,80
1-2 weeks delivery time
-
+

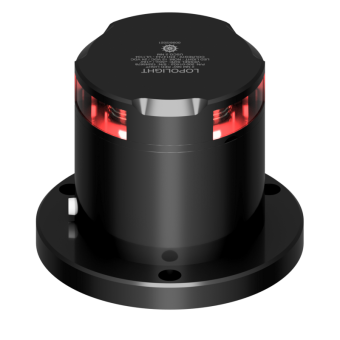

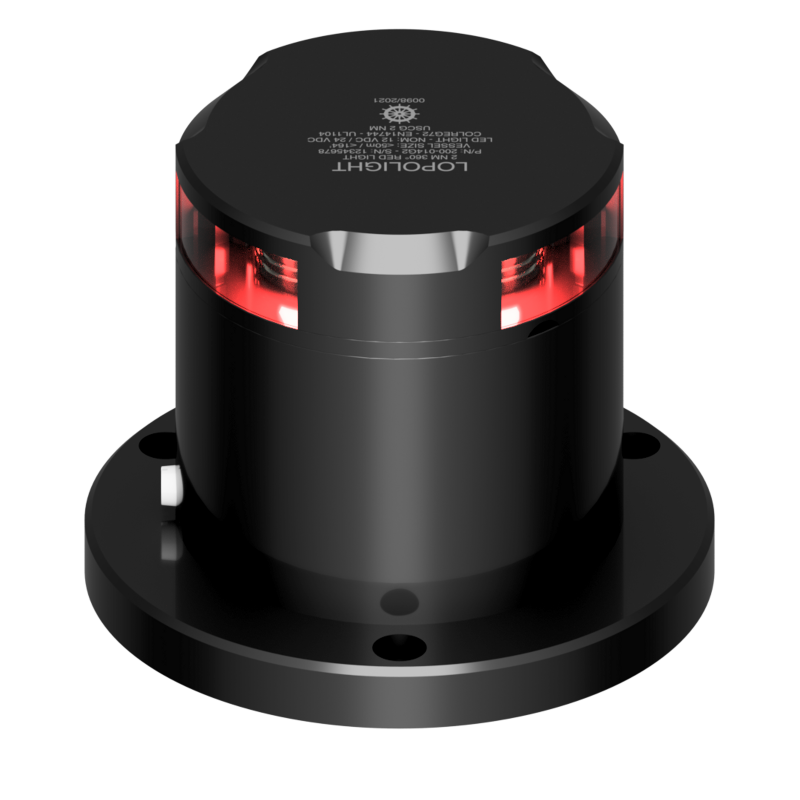

The Lopolight 201-014-PRO-I-EX is a black 360° red navigation light with built-in de-icing, ATEX Zone 1 & 2 certified, and horizontally mounted on an aluminum base. It provides IP68 protection, 2NM visibility, and reliable performance in icy marine conditions.
- Description
- Ask a Question
-
Lopolight 201-014-PRO-I-EX - Navigation Light 2NM 360° Red, Black, EX Zone 1&2, Ice-Class
This black 360° red navigation light is ATEX Zone 1 & 2 certified and features a built-in de-icing function. Horizontally mounted on a 400-037 EX/MIL aluminum base, it ensures reliable performance in icy marine environments.
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR), declaration and certificates available on Lopolight Support
- Mounting: Horizontal on 400-037 EX/MIL alu base
- Cable Direction: Side, includes HDPE base plate (no cable glands or ground strap included)
- Model Number: 201-014-PRO-I-EX
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Standards Approved: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2nm
- Included: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438040670
- IP Rating: IP68
- Power Draw: 2 W
- UPC Code: 879343040802
- Connection: Plug connector
- Current Consumption: 150mA @12VDC, 85mA @24VDC
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1 Kg / 35.27 Oz
-
