SKU:
BP 201-014-PRO-EX
$ 1.558,43
1-2 weeks delivery time
-
+
The Lopolight 201-014-PRO-EX is a 360° red navigation light in black, certified for ATEX Zone 1 & 2 environments. Horizontally mounted on an aluminum base, it provides IP68 protection, 2NM visibility, and robust construction for hazardous marine applications.
- Description
- Ask a Question
-

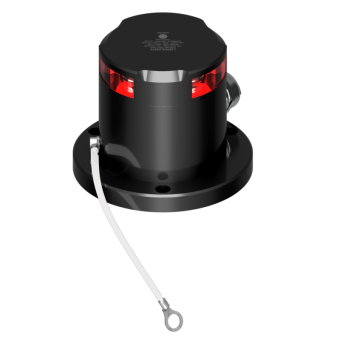

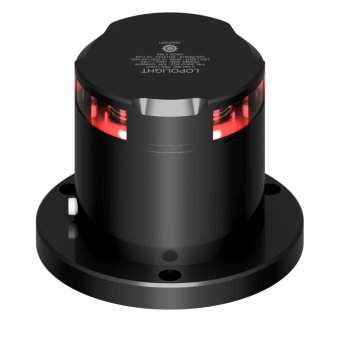

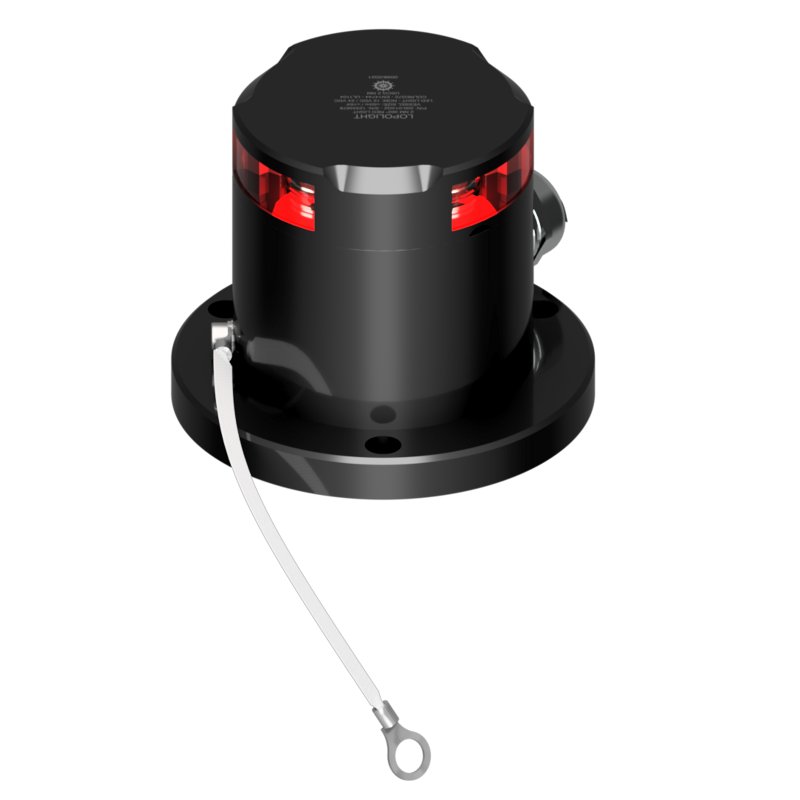

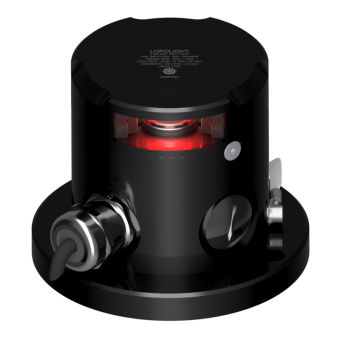

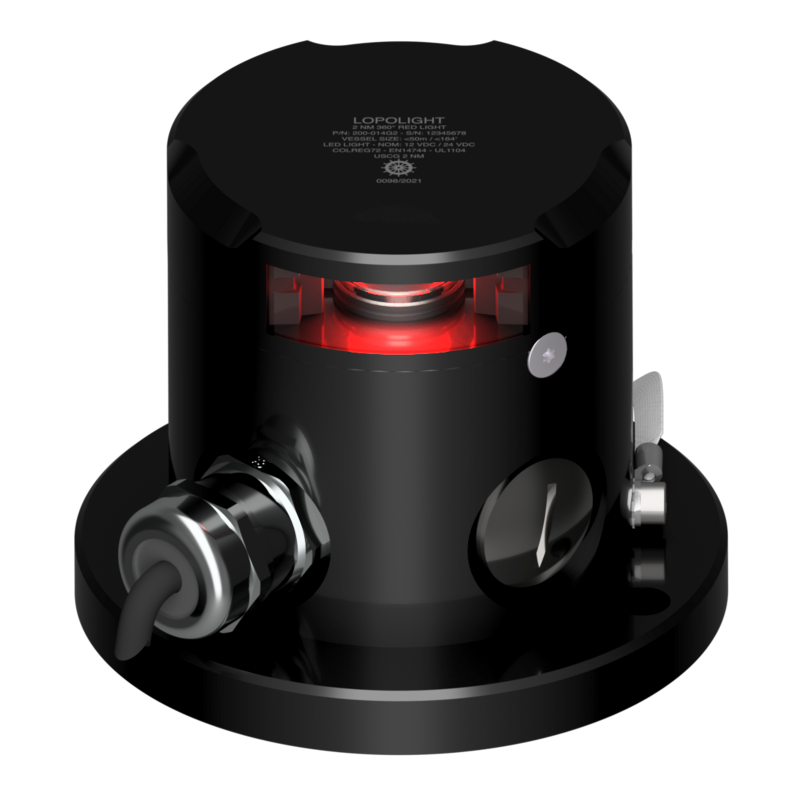

Lopolight 201-014-PRO-EX - Navigation Light 2NM 360° Red, Black, EX Zone 1&2
This 360° red navigation light is designed for hazardous ATEX Zone 1 & 2 environments. Mounted horizontally on a 400-037-B aluminum base, it offers IP68 protection and robust construction for safe marine operation.
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Mounting: Horizontal on 400-037-B alu base
- Cable Direction: Side, includes HDPE base plate (no cable glands or ground strap included)
- Model Number: 201-014-PRO-EX
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Standards Approved: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2nm
- Included: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438038271
- IP Rating: IP68
- Power Draw: 2 W
- UPC Code: 879343038403
- Connection: Plug connector
- Current Consumption: 150mA @12VDC, 85mA @24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1 Kg / 35.27 Oz
-
