SKU:
BP 201-014-FB
$ 808,25
1-2 weeks delivery time
-
+
The Lopolight 201-014-FB is a 360° red navigation light in silver with a flat base and pre-attached 0.7m cable. Horizontally mounted, it provides 2NM visibility, IP68 protection, and easy installation for vessels of varying sizes.
- Description
- Ask a Question
-

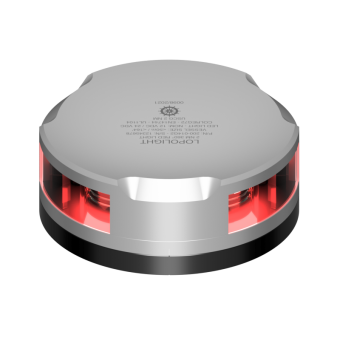

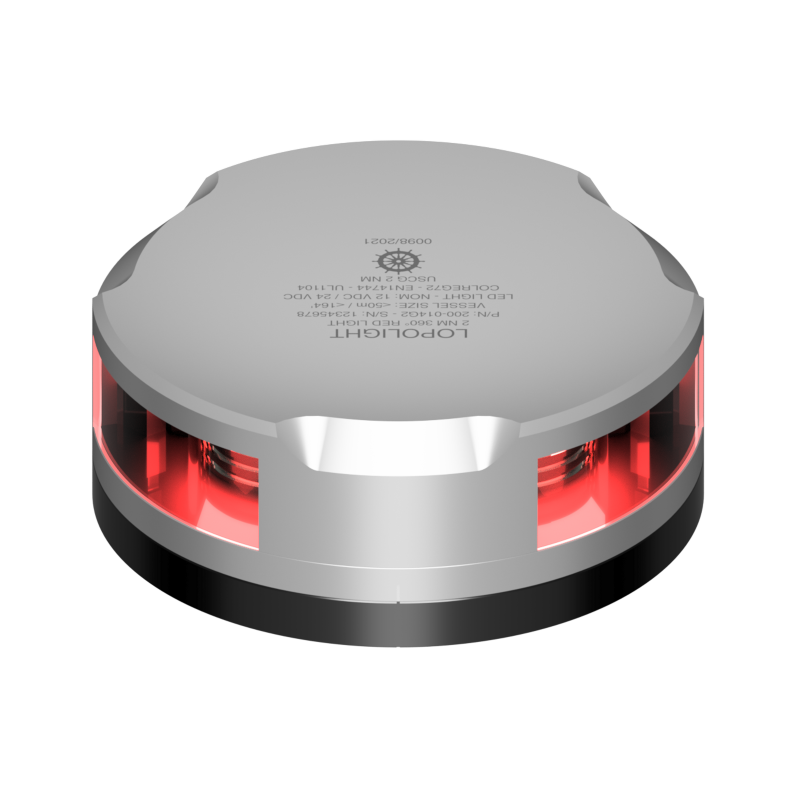

Lopolight 201-014-FB - Navigation Light 2NM 360° Red, Silver W/FB Base
This horizontally mounted 360° red navigation light comes with a flat base (FB) system and pre-attached marine-grade cable, offering an easy installation for vessels of varying sizes.
- Mounting: Horizontal with 0.7m cable
- Base System: FB (flat base) POM mounting
- Model Number: 201-014-FB
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: DNV
- Standards Approved: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included: 1 Navigation light, precabled with 0.75m shielded marine-grade cable, Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438042971
- IP Rating: IP68
- Power Draw: 2.1 W
- UPC Code: 879343043100
- Connection: 0.7m cable
- Current Consumption: 150mA @12VDC, 85mA @24VDC
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.45 Kg / 15.93 Oz
-
