SKU:
BP 201-014-FB-B 15M
$ 909,93
1-2 weeks delivery time
-
+
The Lopolight 201-014-FB-B 15M is a black 360° red navigation light with a flat base and 15-meter cable. It ensures horizontal mounting, 2NM visibility, IP68 protection, and flexible installation for various vessel sizes.
- Description
- Ask a Question
-

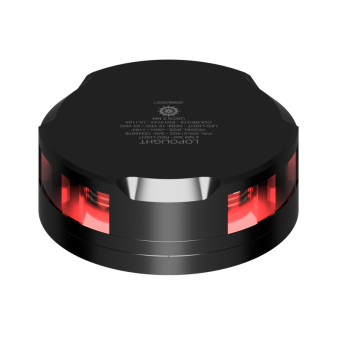

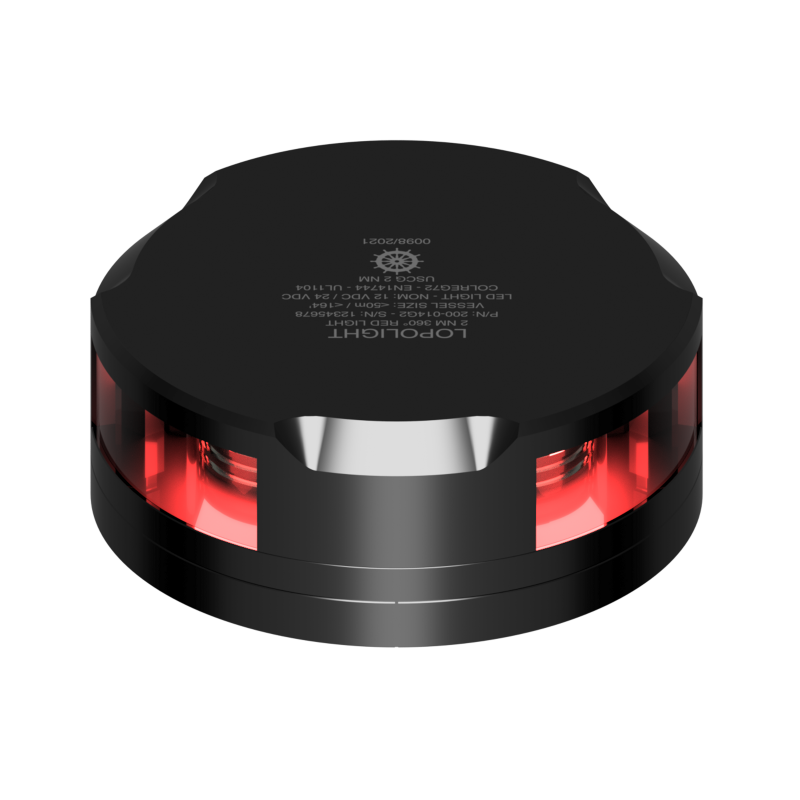

Lopolight 201-014-FB-B 15M - Navigation Light 2NM 360° Red, Black W/FB Base
This horizontally mounted 360° red navigation light with black finish comes with a flat base system and a 15-meter cable, designed for flexible marine installation and long cable reach.
- Mounting: Horizontal with 15m cable
- Base System: FB (flat base) POM mounting
- Model Number: 201-014-FB-B 15M
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: DNV
- Standards Approved: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438043022
- IP Rating: IP68
- Power Draw: 2.1 W
- UPC Code: 879343043155
- Connection: 15m cable
- Current Consumption: 150mA @12VDC, 85mA @24VDC
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
-
