SKU:
BP 201-013ST-PRO-EX
$ 2.508,82
1-2 weeks delivery time
-
+
The Lopolight 201-013ST-PRO-EX is an ATEX Zone 1 & 2 certified double yellow towing light offering 2NM visibility. It is horizontally mounted on an aluminum base with IP68 protection, black anodized aluminum construction, 2 W power draw, and includes an installation guide.
- Description
- Ask a Question
-

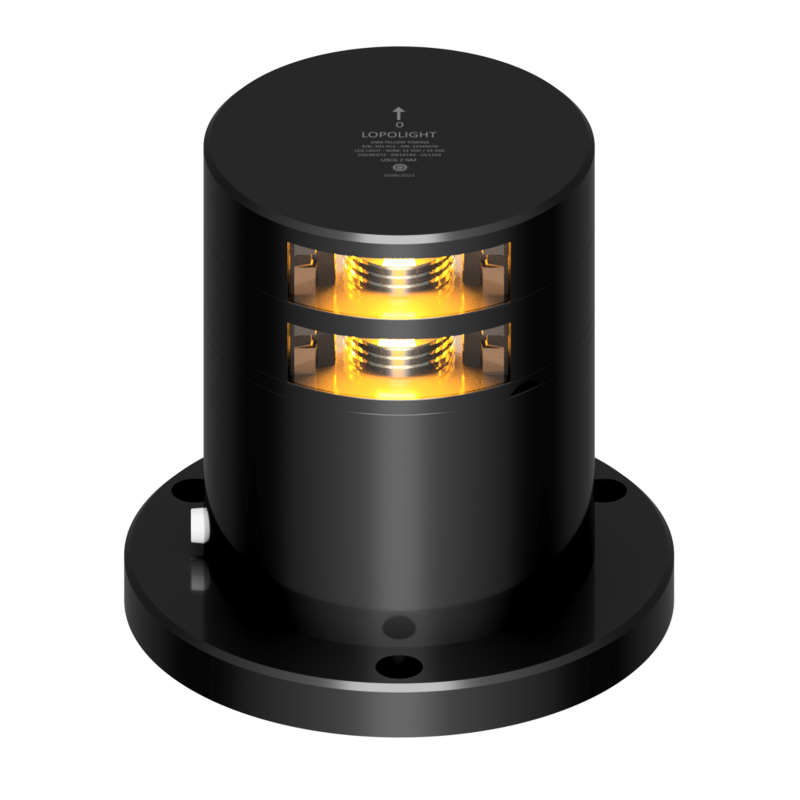

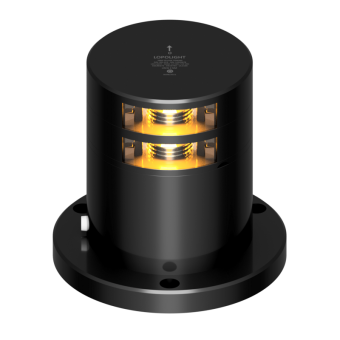

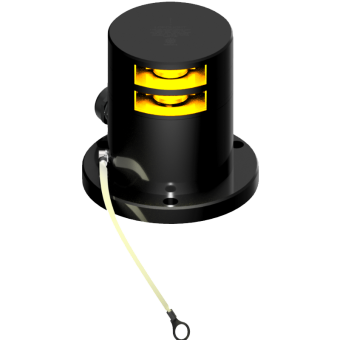

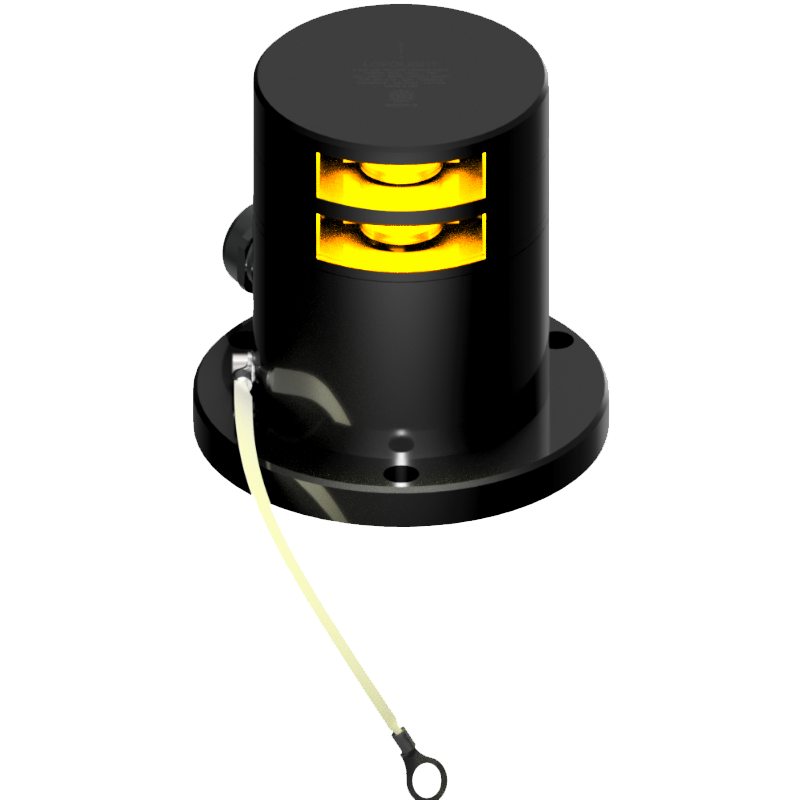

Lopolight 201-013ST-PRO-EX - Navigation Light 2NM 135° Yellow, Towing, Double, Black, EX Zone 1&2
Designed for hazardous areas, this ATEX Zone 1 & 2 certified navigation light offers safe operation with 2NM visibility and towing functionality. Its black anodized construction and horizontal mounting on an aluminum base make it ideal for demanding marine conditions.
- Number: 201-013ST-PRO-EX
- Light Color: Yellow
- Dimensions: Ø92,5mm x 125,5mm (Ø3.6" x 4.9")
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2NM
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal on 400-037-B aluminum base (IP68)
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2 W
- Current Consumption: 124 mA @ 12VDC, 71 mA @ 24VDC
- Connection: Plug connector
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.41 Kg (49.73 Oz)
- Special Features: IEC Ex Zone 1 certified, ATEX Zone 1 certified, cable direction side, includes HDPE base plate, no cable glands or ground strap included
- IP Rating: IP68
- EAN: 5704438038264, UPC: 879343038397
-
