SKU:
BP 201-013-PRO-EX
$ 1.558,43
1-2 weeks delivery time
-
+
The Lopolight 201-013-PRO-EX is an explosion-proof yellow towing light certified for ATEX Zone 1 & 2. It provides 135° visibility and 2NM range, mounted on an aluminum base with IP68 protection. The light features black anodized aluminum, operates on 10-32VDC with 2 W power draw, and is approved to extensive marine and explosion safety standards.
- Description
- Ask a Question
-

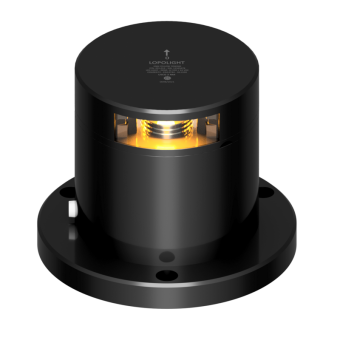

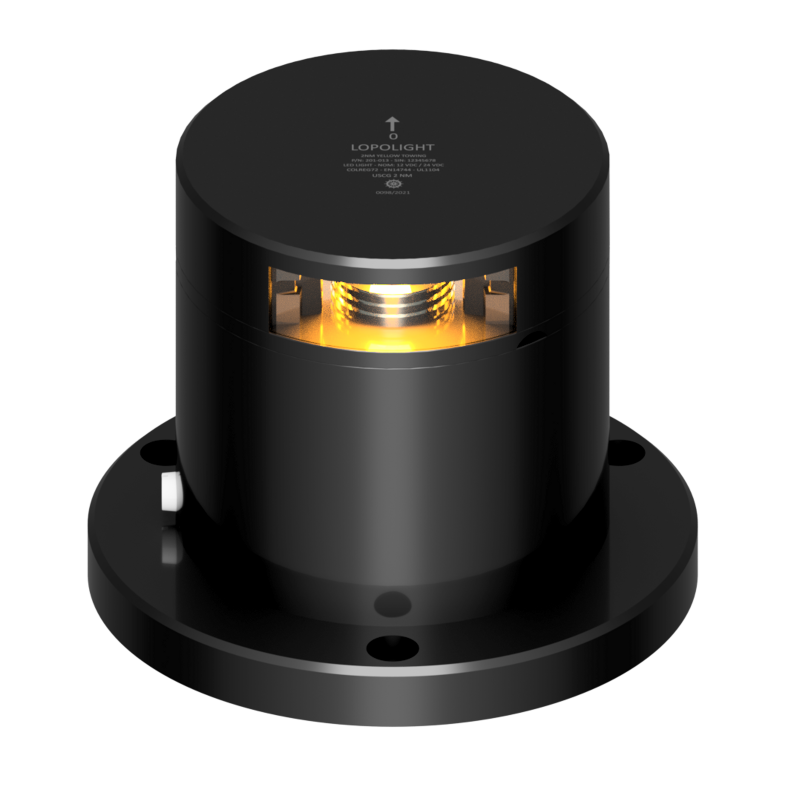

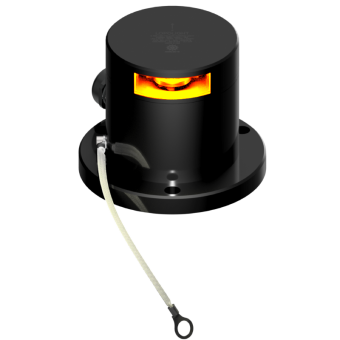

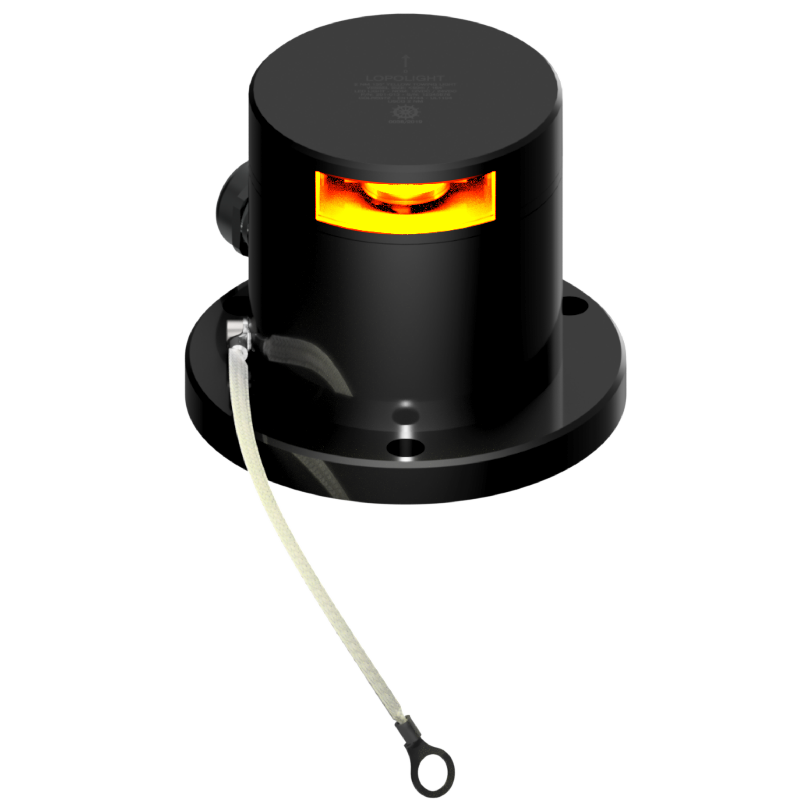

Lopolight 201-013-PRO-EX - Navigation Light 2NM 135° Yellow, Towing, Black, EX Zone 1&2
Certified for ATEX Zone 1 & 2, this explosion-proof yellow towing light is mounted on a 400-037-B aluminium base with IP68 protection. It provides 135° visibility, 2NM range, and is suitable for vessels requiring certified EX zone equipment.
- Certified for ATEX Zone 1 & 2
- Horizontally mounted on 400-037-B aluminium base (IP68)
- Cable direction: side, includes HDPE base plate
- No cable glands or ground strap included
- Number: 201-013-PRO-EX
- Light Color: Yellow
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: Certified by DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Intensity: >5.4cd
- Visibility: 2nm
- Included in Package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power draw: 2W
- EAN: 5704438040519
- IP rating: IP68
- UPC Code: 879343040642
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 124
- Current consumption (mA @ 24VDC): 71
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: Under 12M, 12-20M, 20-50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1.04 Kg / 36.68 Oz
-
