SKU:
BP 201-012ST-PRO-I-EX
$ 3.512,33
1-2 weeks delivery time
-
+
The Lopolight 201-012ST-PRO-I-EX is a black 360° double white light for EX Zone 1 & 2 with ice-class de-icing. It mounts horizontally on a specialized aluminum base, has an IP68 rating, and is suitable for vessels under 50 meters in extreme environments.
- Description
- Ask a Question
-

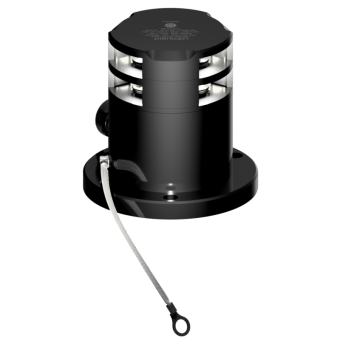

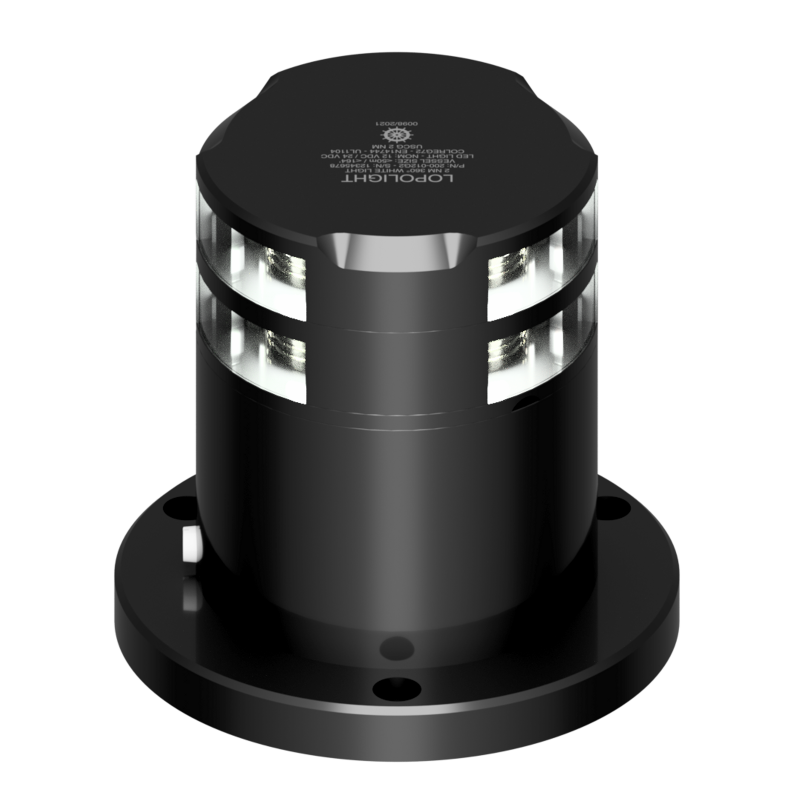

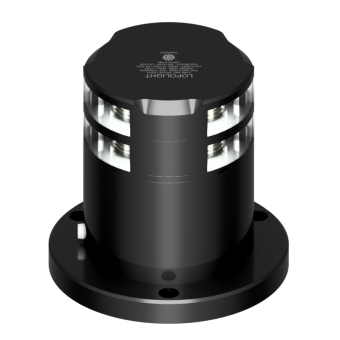

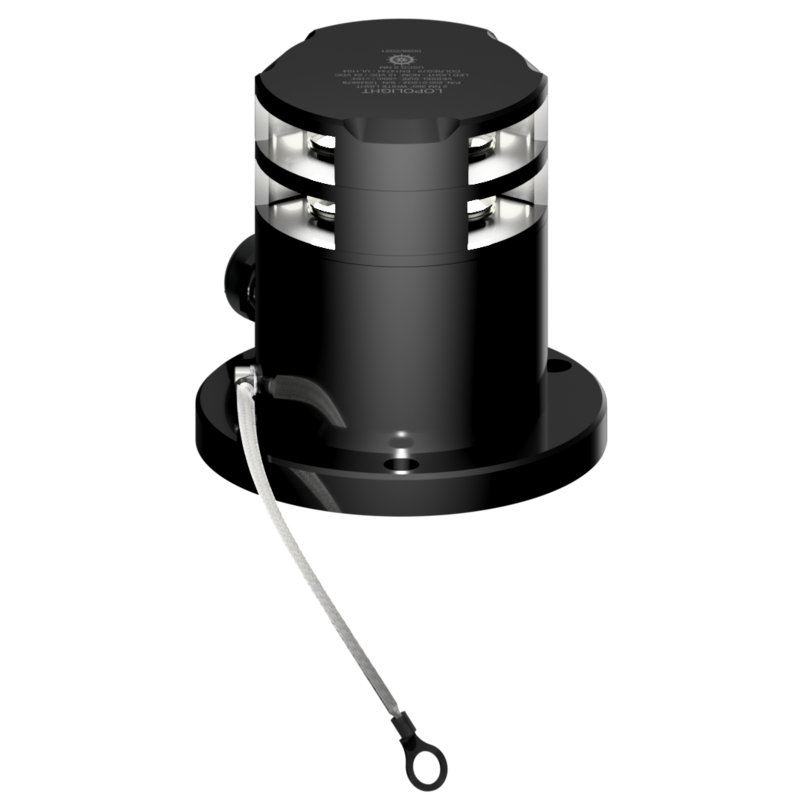

Lopolight 201-012ST-PRO-I-EX - Navigation Light 2NM 360° White, Double, EX Zone 1&2, Ice-Class
Designed for hazardous environments, this navigation light delivers a full 360° white beam with EX Zone 1 & 2 certification. It features a built-in de-icing function and is perfect for vessels operating in extreme conditions.
- Number: 201-012ST-PRO-I-EX
- Light Color: White
- Dimensions Metric: Ø92,5mm x 125,5mm
- Dimensions Imperial: Ø3.6" x 4.9"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2NM
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal on 400-037 EX/MIL aluminum base
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Connection: Plug connector
- Power Draw: 2W
- Current Consumption (mA @ 12VDC): 155
- Current Consumption (mA @ 24VDC): 112
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Under 12M, 12-20M, 20-50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.4 Kg / 49.38 Oz
- Note: Cable direction side, includes HDPE base plate; no cable glands or ground strap included
-
