SKU:
BP 201-012ST-PRO-EX
$ 2.508,82
1-2 weeks delivery time
-
+
The Lopolight 201-012ST-PRO-EX is a black 360° double white light certified for EX Zone 1 & 2. Designed for hazardous areas, it features a horizontal mount, IP68 aluminum base, plug connector, and is suitable for vessels under 50 meters.
- Description
- Ask a Question
-

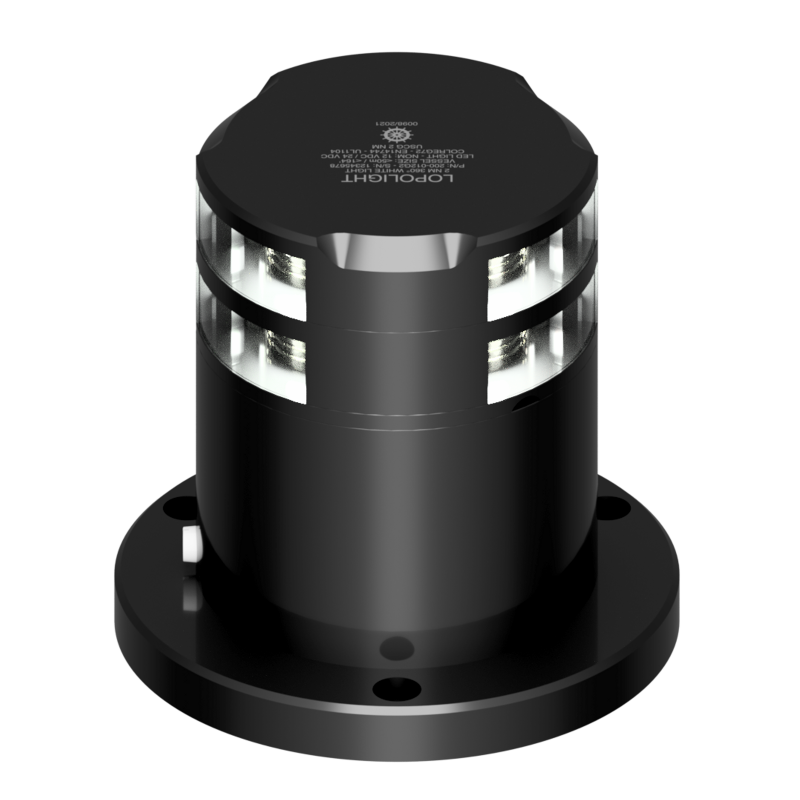

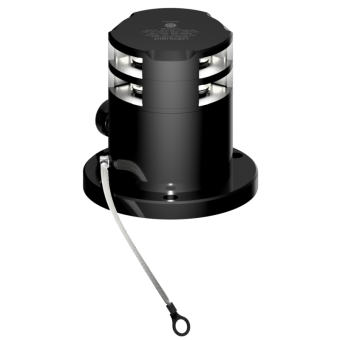

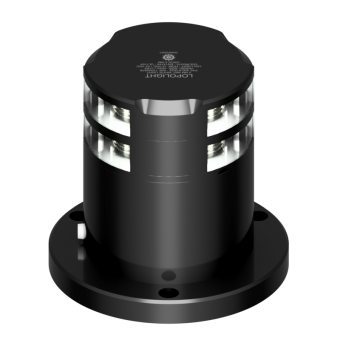

Lopolight 201-012ST-PRO-EX - Navigation Light 2NM 360° White, Double, Black, EX Zone 1&2
Designed for hazardous areas, this black 360° double white navigation light is certified for ATEX and IEC Ex Zones 1 & 2. It mounts horizontally on a 400-037-B aluminium base with a side cable direction and HDPE base plate.
- Finish: Black hard coat anodized aluminum 50µ
- Configuration: Double light
- Connector: Included plug connector
- IP Rating: IP68 Aluminium base
- Mounting: Horizontal on 400-037-B alu base
- Cable: Side direction, HDPE base plate included
- No Cable Glands or Ground Strap: Not included
- Product Number: 201-012ST-PRO-EX
- Light Color: White
- Dimensions (Metric): Ø92,5mm x 125,5mm
- Dimensions (Imperial): Ø3.6" x 4.9"
- Certification: Certified by DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved Standards: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2NM
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2 W
- Current Consumption: 155 mA @ 12VDC, 112 mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Suitable Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Weight: 1.3 Kg / 45.85 Oz
- EAN: 5704438038257
- UPC Code: 879343038380
-
