SKU:
BP 201-012-PRO-I-EX
$ 2.181,80
1-2 weeks delivery time
-
+
The Lopolight 201-012-PRO-I-EX is a horizontally mounted 360° navigation light with built-in de-icing, certified for ATEX Zone 1 & 2, providing safe operation in icy conditions. It is DNV certified, has 2NM visibility, operates at 10-32VDC, consumes 155mA at 12VDC or 112mA at 24VDC, and is suitable for vessels under 50 meters.
- Description
- Ask a Question
-

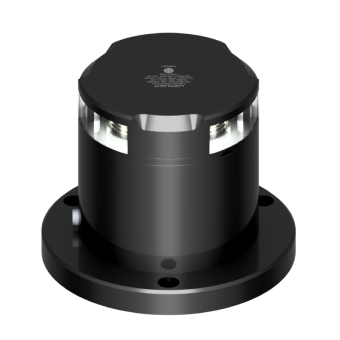

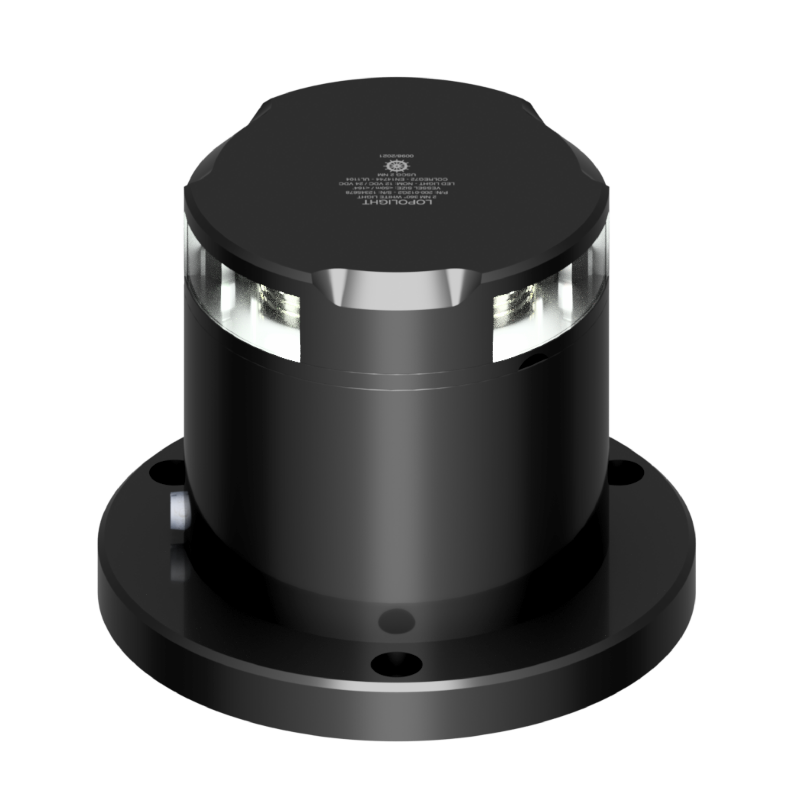

Lopolight 201-012-PRO-I-EX - Navigation Light 2NM 360° White, Black, EX Zone 1&2, Ice-Class
Designed for extreme conditions, this navigation light includes a built-in de-icing function and is certified for ATEX Zone 1 & 2. Ideal for vessels under 50 meters, it ensures safe operation even in icy environments.
- Certified for ATEX Zone 1 & 2
- Built-in De-icing function
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable direction: side, including HDPE base plate
- No cable glands or ground strap included
- Model Number: 201-012-PRO-I-EX
- Light Color: White
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2 W
- Connection: Plug connector
- Current Consumption: 155 mA @ 12VDC, 112 mA @ 24VDC
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Under 12M, 12-20M, 20-50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1 Kg / 35.27 Oz
- EAN: 5704438040656
- UPC Code: 879343040789
-
