SKU:
BP 201-011SB-B 15M
$ 580,31
1-2 weeks delivery time
-
+
The Lopolight 201-011SB-B 15M is a vertically mounted starboard-side navigation light, designed to work with the 201-011PS model for complete 225° coverage. With a 15-meter cable and DNV certification, it provides 3NM visibility and consumes 280mA at 12VDC or 104mA at 24VDC. The light is constructed from black anodized aluminum, PMMA lens, and stainless steel screws, and comes with mounting screws and an installation guide.
- Description
- Ask a Question
-

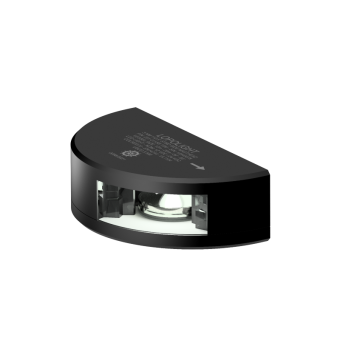

Lopolight 201-011SB-B 15M - Navigation Light 3NM 112.5° White, Masthead Starboard Side Only, Black
This vertically mounted navigation light provides precise starboard-side illumination. It must be paired with model 201-011PS to achieve a complete 225° arc of light for vessels 12-20 meters long.
- Mounting: Vertical
- Cable: 15 meters
- Note: Complete 225° arc requires 201-011PS
- Product number: 201-011SB-B 15M
- Light color: White
- Dimensions: 92.5 x 28 x 49.7 mm (3.6" x 1.1" x 1.95")
- Certification: DNV certified
- Intensity: >15cd
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 3 nautical miles
- Package contents: 1 navigation light, precabled with 0.75m shielded marine-grade cable, 2 mounting screws (M6 x 8mm), installation guide
- Operating temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32VDC
- IP rating: IP68
- Power draw: 3W
- Connection: 15m cable
- Current consumption: 280mA @12VDC, 104mA @24VDC
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Vessel size: 12-20M
- Weight: 1.01kg (35.62oz)
- EAN: 5704438012691
- UPC: 879343012694
-
