SKU:
BP 201-011PS-B 15M
$ 580,31
1-2 weeks delivery time
-
+
The Lopolight 201-011PS-B 15M is a vertically mounted port-side navigation light designed for precise illumination and must be paired with the 201-011SB model for a full 225° arc. It has a 15-meter cable, DNV certification, 3NM visibility, and consumes 280mA at 12VDC or 104mA at 24VDC. The unit is made of black anodized aluminum with a PMMA lens and includes mounting screws and an installation guide.
- Description
- Ask a Question
-

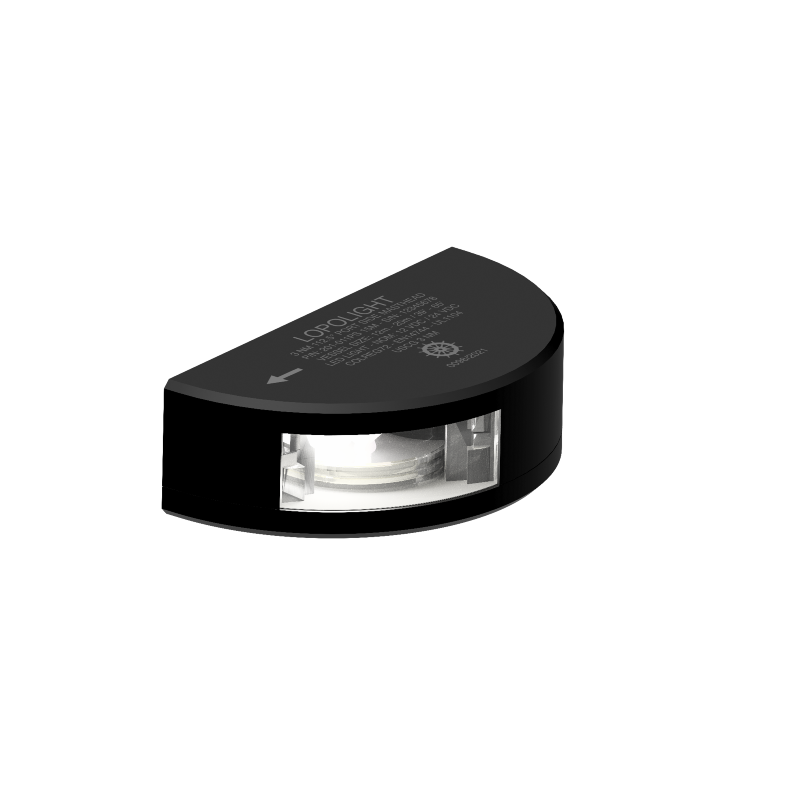

Lopolight 201-011PS-B 15M - Navigation Light 3NM 112.5° White, Masthead Port Side Only, Black
This vertically mounted navigation light provides precise port-side illumination. It must be used with model 201-011SB to achieve a complete 225° arc of light.
- Mounting: Vertical
- Cable: 15 meters
- Note: Complete 225° arc requires 201-011SB
- Product number: 201-011PS-B 15M
- Light color: White
- Dimensions: 92.5 x 28 x 49.7 mm (3.6" x 1.1" x 1.95")
- Certification: DNV certified
- Intensity: >15cd
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 3 nautical miles
- Package contents: 1 navigation light, precabled with 0.75m shielded marine-grade cable, 2 mounting screws (M6 x 8mm), installation guide
- Operating temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32VDC
- IP rating: IP68
- Power draw: 3W
- Connection: 15m cable
- Current consumption: 280mA @12VDC, 104mA @24VDC
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Vessel size: 12-20M
- Weight: 1.01kg (35.62oz)
- EAN: 5704438012660
- UPC: 879343012663
-
