SKU:
BP 201-011KLST-PRO
$ 1.426,29
1-2 weeks delivery time
-
+
The Lopolight 201-011KLST-PRO is a horizontally mounted double black anodized masthead light with IP68 POM base, designed for vessels 12-20 meters. It features side cable orientation, HDPE base plate, compatible cable diameters, operates at 10-32VDC with 3W power draw, and is DNV certified with IP68 protection and robust aluminum construction.
- Description
- Ask a Question
-

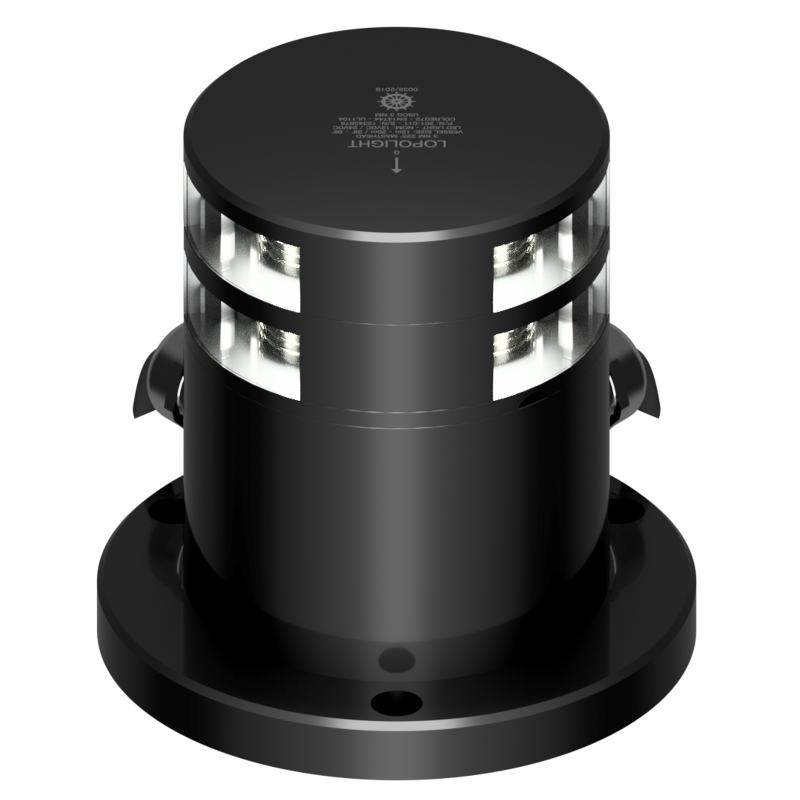

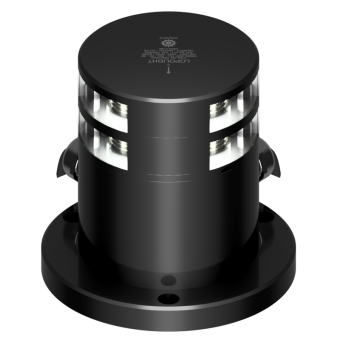

Lopolight 201-011KLST-PRO - Navigation Light 3NM 225° White, Masthead, Double, Black Anodized
Engineered for reliable maritime navigation, this horizontally mounted light offers robust construction and optimal visibility for vessels between 12-20 meters.
- Mounting: Horizontal, on POM base with IP68 protection
- Cable orientation: Side
- Included: HDPE base plate, quality cable glands
- Cable diameter compatibility: 7-13mm (9/32"-1/2") and 4.5-10mm (5/32"-3/8")
- Product number: 201-011KLST-PRO
- Light color: White
- Dimensions: Ø92.5mm x 96.5mm (3.6" x 3.8")
- Certification: DNV certified
- Intensity: >15cd
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 3 nautical miles
- Package contents: 1 navigation light, precabled with 0.75m shielded marine-grade cable, 2 mounting screws (M6 x 8mm), installation guide
- Operating temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32VDC
- IP rating: IP68
- Power draw: 3W
- Connection: Plug connector
- Current consumption: 232mA @12VDC, 127mA @24VDC
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.36kg (47.97oz)
- EAN: 5704438012646
- UPC: 879343012649
-
