SKU:
BP 201-011KLST-CD
$ 1.588,53
1-2 weeks delivery time
-
+
The Lopolight 201-011KLST-CD is a double silver anodized horizontal masthead light with plug connector and IP68 aluminum base. It provides 3NM white visibility, operates at 10-32VDC with a 3W power draw, and is made from aluminum, PMMA lens, and stainless steel screws. DNV certified, it is suitable for vessels 12-20 meters and includes necessary mounting hardware.
- Description
- Ask a Question
-

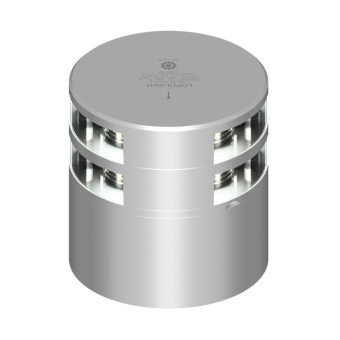

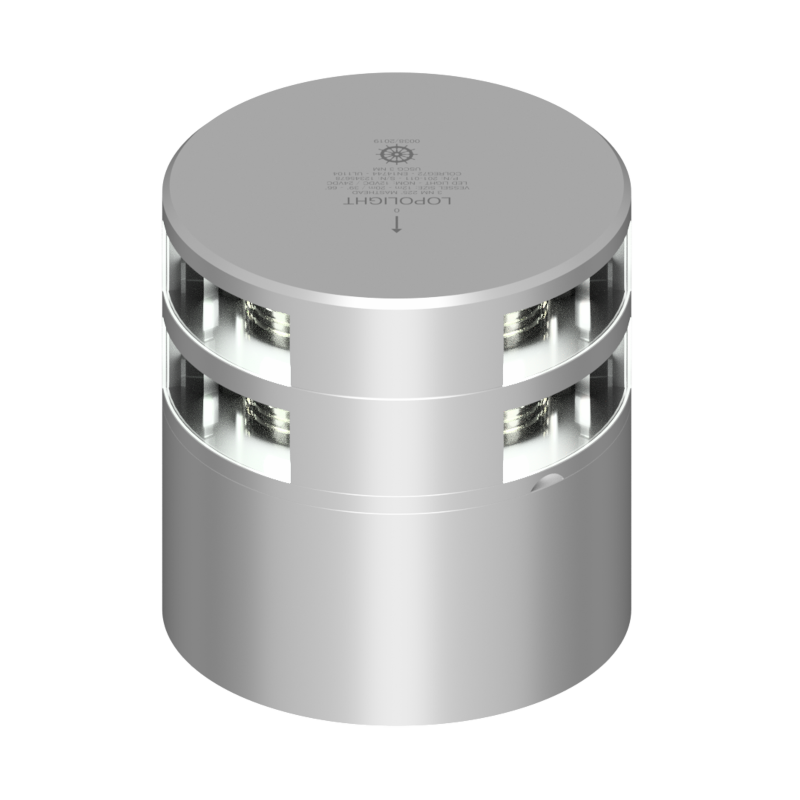

Lopolight 201-011KLST-CD - Navigation Light 3NM 225° White, Masthead, Double, Silver +Conn & CD-Base
This high-performance double masthead navigation light offers a silver anodized finish, plug connector, and IP68 aluminum base for secure, horizontal installation on vessels 12-20M.
- Mounting: Horizontal
- Light Color: White
- Double light with connector
- IP68 aluminum base with cable down M16 glands
- Dimensions: Ø92.5mm x 96.5mm (3.6"" x 3.8"")
- Certification: DNV certified
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >15cd
- Visibility: 3NM
- Included in package: 1 navigation light
- Operating temperature: -25°C to 55°C
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP rating: IP68
- Power draw: 3W
- Connection: Plug connector
- Current consumption: 232mA @ 12VDC, 127mA @ 24VDC
- Vessel size: 12-20M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Number: 201-011KLST-CD
- EAN: 5704438044654
- UPC Code: 879343044787
-
