SKU:
BP 186711AKLFB
$ 1.016,84
1-2 weeks delivery time
-
+
The Lopolight 201-011KL-FB is a horizontally mounted masthead navigation light for vessels under 12 meters, featuring a silver anodized finish and a flat base (FB) POM mounting system. It provides 3NM visibility, consumes 2 watts, and includes a 0.7-meter cable, with IP68 protection and certification from DNV.
- Description
- Ask a Question
-

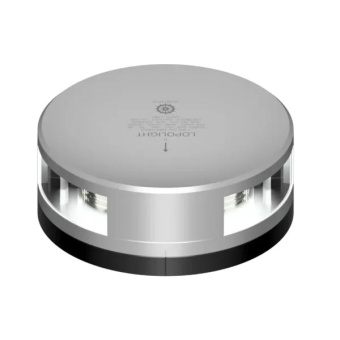

Lopolight 201-011KL-FB - Navigation Light 3NM 225° White, Masthead, Silver w/FB Base
Designed for horizontal mounting, this compact masthead navigation light features a silver anodized finish and a durable flat base (FB) POM mounting system. Ideal for vessels under 12 meters, it combines high-performance lighting with marine-grade materials and construction.
- Product Number: 201-011KL-FB
- Light Color: White
- Visibility: 3 nautical miles
- Mounting: Horizontal with FB (flat base) POM system
- Connection: 0.7 meter cable
- Dimensions (Metric): Ø92.5mm x 36mm
- Dimensions (Imperial): Ø3.6" x 1.4"
- Weight: 0.48 Kg / 16.92 Oz
- Operating Voltage: 10-32VDC
- Power Draw: 2 Watts
- Current Consumption at 12VDC: 137 mA
- Current Consumption at 24VDC: 80 mA
- Operating Temperature: -25°C to 55°C
- IP Rating: IP68
- Material Composition:
- Silver anodized aluminum (25µ)
- PMMA lens
- A4 stainless steel screws
- Epoxy and Polyurethane
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Vessel Size Compatibility: Under 12M
- Certification: DNV
- Standards Met: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in Package:
- 1 Navigation light with 0.75m pre-cabled connection
- Installation guide
- EAN: 5704438043404
- UPC Code: 879343043537
- Article Number: 186711AKLFB
- Packaging Unit: 1 piece
- Supplier Article Code: 201-011KL-FB
-
