SKU:
BP 201-011KL-CD
$ 1.292,83
1-2 weeks delivery time
-
+

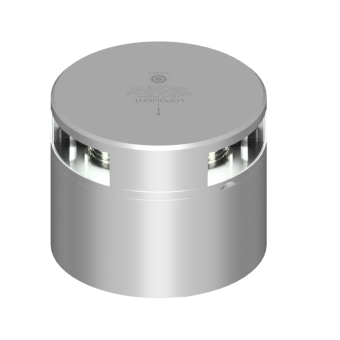

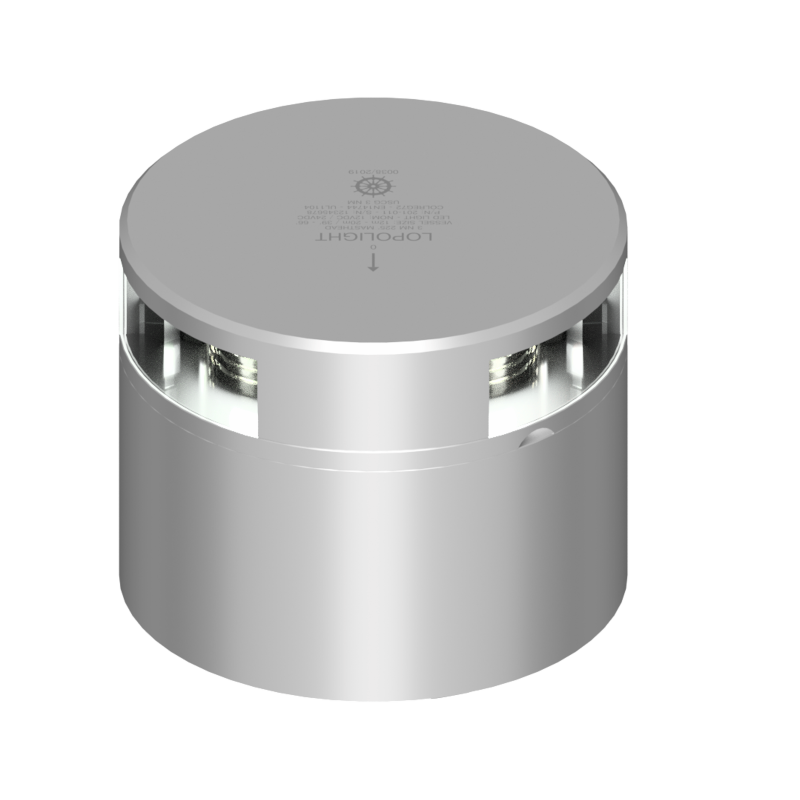

The Lopolight 201-011KL-CD is a silver anodized horizontal masthead navigation light with a plug connector and CD-base, providing 3NM white visibility. Operating at 10-32VDC with a 3W power draw, it is constructed from aluminum, PMMA lens, and stainless steel screws. The IP68-rated light is DNV certified, suitable for vessels 12-20 meters, and includes a silver anodized aluminum base with cable down M16 glands.
- Description
- Ask a Question
-
Lopolight 201-011KL-CD - Navigation Light 3NM 225° White, Masthead, Silver W/Conn & CD-Base
This navigation light offers robust 3NM visibility with a silver anodized finish and integrated plug connector, ideal for general-purpose vessels requiring reliable performance.
- Number: 201-011KL-CD
- Light Color: White
- Dimensions (metric): Ø92,5mm x 74,5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3NM
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 3W
- Current Consumption: 232mA @ 12VDC, 127mA @ 24VDC
- IP Rating: IP68
- Connection: Plug connector
- Vessel Size: 12-20M
- Min. Feed Wire Gauge: 0.5mm² (AWG22)
- Silver Anodized IP68 Aluminum Base with Cable Down M16 Glands
- Included in Package: 1 Navigation Light
- Certification: DNV
- EAN: 5704438044623
- UPC Code: 879343044756
-
