SKU:
BP 201-011KL-B-RPM
$ 1.809,40
1-2 weeks delivery time
-
+
The Lopolight 201-011KL-B-RPM is a dimmable black anodized masthead navigation light designed for small to medium Navy and SAR vessels, offering 3NM white visibility. It operates at 20-32VDC, is horizontally mounted, made from black hard coat anodized aluminum with a PMMA lens, and features an IP68 plug connection. The light is certified by DNV, suitable for vessels 12-20 meters, and supports cable diameters 7-12.5mm.
- Description
- Ask a Question
-

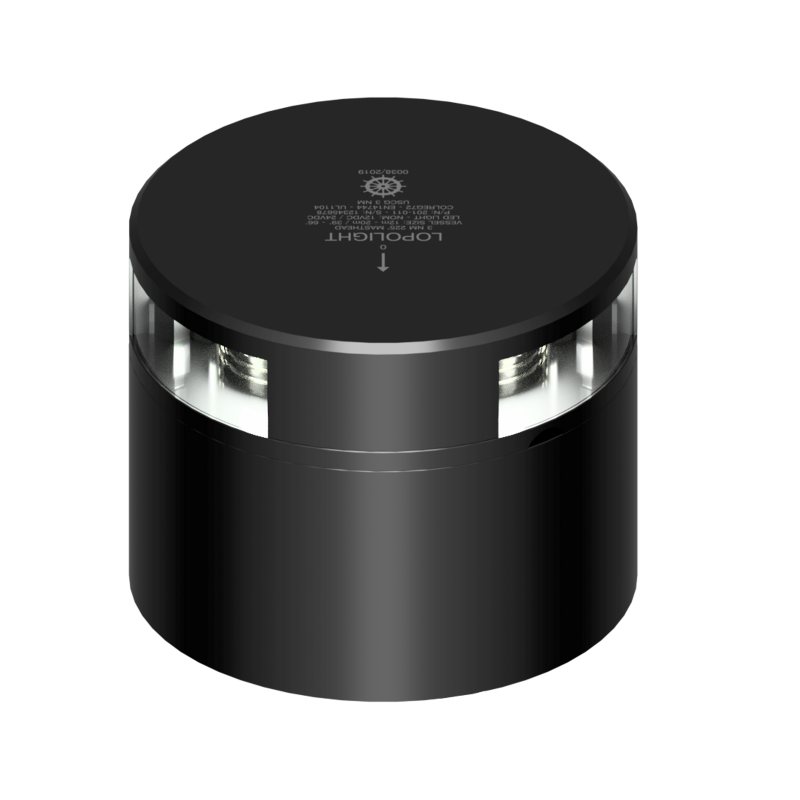

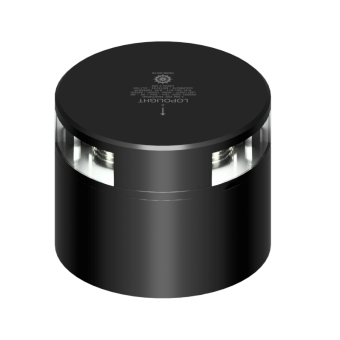

Lopolight 201-011KL-B-RPM - Navigation Light 3NM 225° White, Masthead, Dimmable, Black Anodized
This high-performance navigation light is designed for small to medium Navy and SAR vessels, providing reliable 3NM visibility with a dimmable feature for operational flexibility.
- Number: 201-011KL-B-RPM
- Light Color: White
- Dimensions (metric): Ø92,5mm x 74,5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3NM
- Operating Temperature: -60°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- IP Rating: IP68
- Connection: Plug connector
- Special Attributes: Dimmable (only for NAVY/SAR vessels)
- Vessel Size: 12-20M
- Min. Feed Wire Gauge: 0.5mm² (AWG22)
- Weight: 1 Kg / 35.27 Oz
- IP68 Connection Base with Cable Side/Down Option
- Cable Dimensions: 7mm - 12,5mm (1/4" - 1/2")
- HDPE Base Plate for Corrosion Barrier Installation
- Certification: DNV
- EAN: 5704438038462
- UPC Code: 879343038595
-
