SKU:
BP 186711ADLX
$ 1.644,18
1-2 weeks delivery time
-
+
The Lopolight 201-011DLX 15M combines a 3NM white navigation light with a 6W decklight for vessels 12-20 meters in length. It includes a 15-meter cable, vertical mounting, and a decklight angled 8° forward with a 26° spread. The unit is built with anodized aluminum, PMMA lens, and epoxy/polyurethane materials, offering IP68 protection and compliance with international marine standards.
- Description
- Ask a Question
-

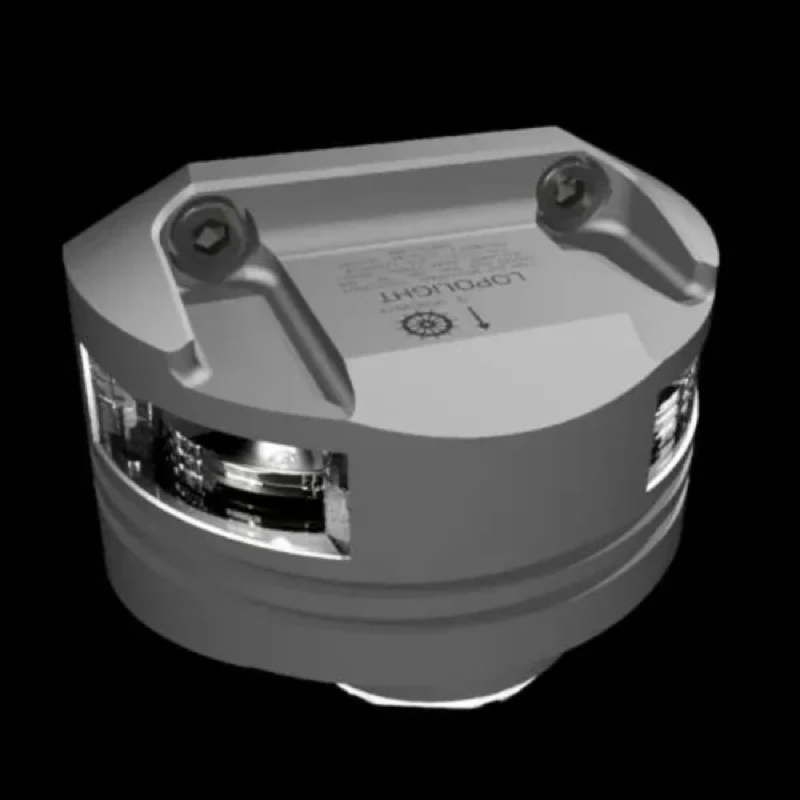

Lopolight 201-011DLX 15M - Navigation Light 3NM 225° White, Masthead + 6W Decklight, Silver
Advanced navigation light combined with a 6W decklight, suitable for vessels between 12 to 20 meters. Features a 15 meter cable and decklight beam angled 8° forward with a 26° spread. Built for vertical mounting and extended wiring applications.
- Product Number: 201-011DLX 15M
- Light Color: White
- Visibility: 3 nautical miles
- Intensity: >15 candela
- Mounting: Vertical
- Decklight Angle: 8° forward
- Decklight Beam: 26°
- Connection: 15 meter cable
- Dimensions (Metric): 54 x 38.7 x 72.2 mm
- Dimensions (Imperial): 2.1" x 1.5" x 2.8"
- Weight: 1.43 Kg / 50.44 Oz
- Operating Voltage: 10-32VDC
- Power Draw: 3 Watts
- Current Consumption at 12VDC: 232 mA
- Current Consumption at 24VDC: 127 mA
- Operating Temperature: -25°C to 55°C
- IP Rating: IP68
- Material Composition:
- Anodized aluminum (25µ)
- PMMA lens
- A4 stainless steel screws
- Epoxy and Polyurethane
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Certification: DNV
- Standards Met: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in Package:
- 1 Navigation light
- 2 Mounting screws (M6 x 8 mm)
- Installation guide
- EAN: 5704438012578
- UPC Code: 879343012571
- Article Number: 186711ADLX
- Packaging Unit: Piece
- Supplier Article Code: 201-011DLX 15M
-
