SKU:
BP 201-011-SUB 6M
$ 1.548,92
1-2 weeks delivery time
-
+
The Lopolight 201-011-SUB 6M is a submersible masthead navigation light designed for vertical installation, providing 225° white illumination visible up to 3 nautical miles. It features a long 6-meter cable, silver anodized aluminum body, PMMA lens, and stainless steel screws, operating at 10-32VDC with a power draw of 3W, and is suitable for vessels 12-20 meters. The light is IP68 rated and approved to multiple maritime standards including COLREG72 and DNV.
- Description
- Ask a Question
-

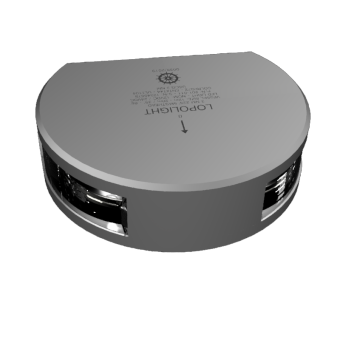

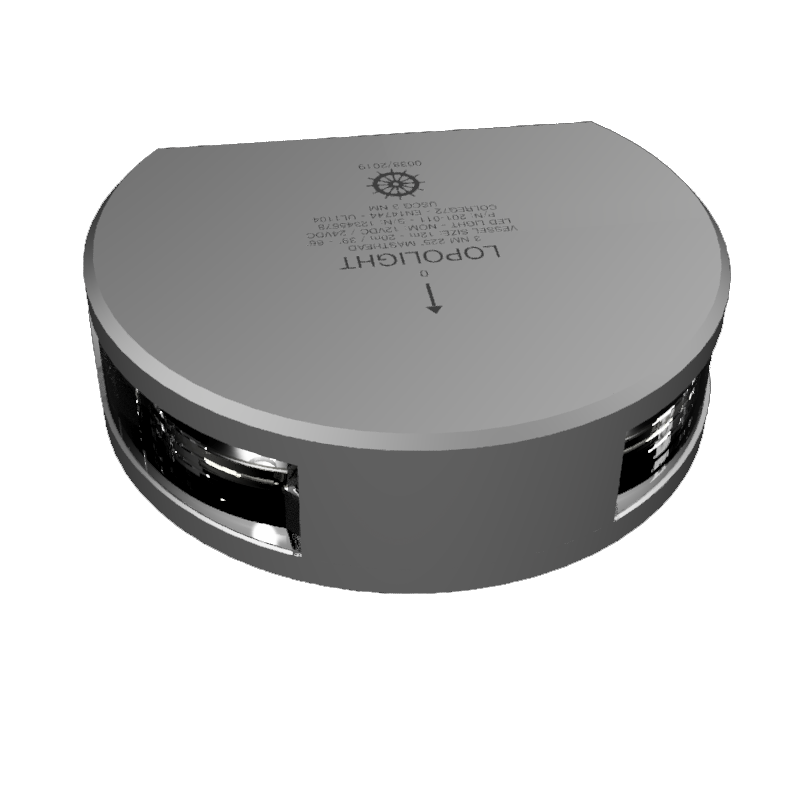

Lopolight 201-011-SUB 6M - Navigation Light 3NM 225° White, Masthead, Silver Anodized
The submersible masthead light designed for vertical installation, offering reliable 225° white illumination and long 6-meter cable for flexible mounting.
- Number: 201-011-SUB 6M
- Light Color: White
- Visibility: 3NM
- Intensity: >15cd
- Dimensions (metric): 74.55 x 28 x 73.16 mm
- Dimensions (imperial): 2.9" x 1.1" x 2.88"
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Operating Voltage: 10-32VDC
- Power Draw: 3W
- Current Consumption: 232 mA @ 12VDC, 127 mA @ 24VDC
- Mounting: Vertical, potted under vacuum, submersible
- Connection: 6m cable
- Included in Package: 1 Navigation light, precabled with 0.75m shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide
- Vessel Size: 12-20M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Temperature: -25°C to 55°C
- Weight: 0.69 Kg / 24.34 Oz
- IP Rating: IP68
- EAN: 5704438012714
- UPC Code: 879343012717
- Certification: DNV
-
