SKU:
BP 186711AD
$ 1.064,31
1-2 weeks delivery time
-
+
The Lopolight 201-011 is a compact and durable navigation light designed for vessels between 12 and 20 meters, featuring a 3NM white light with a 225° beam. It mounts vertically and comes with a 0.75-meter shielded marine-grade cable, silver anodized aluminum housing, and IP68 ingress protection, making it suitable for harsh marine environments. The light draws 3 watts, operates between 10-32VDC, and meets multiple international standards including COLREG72 and DNV.
- Description
- Ask a Question
-

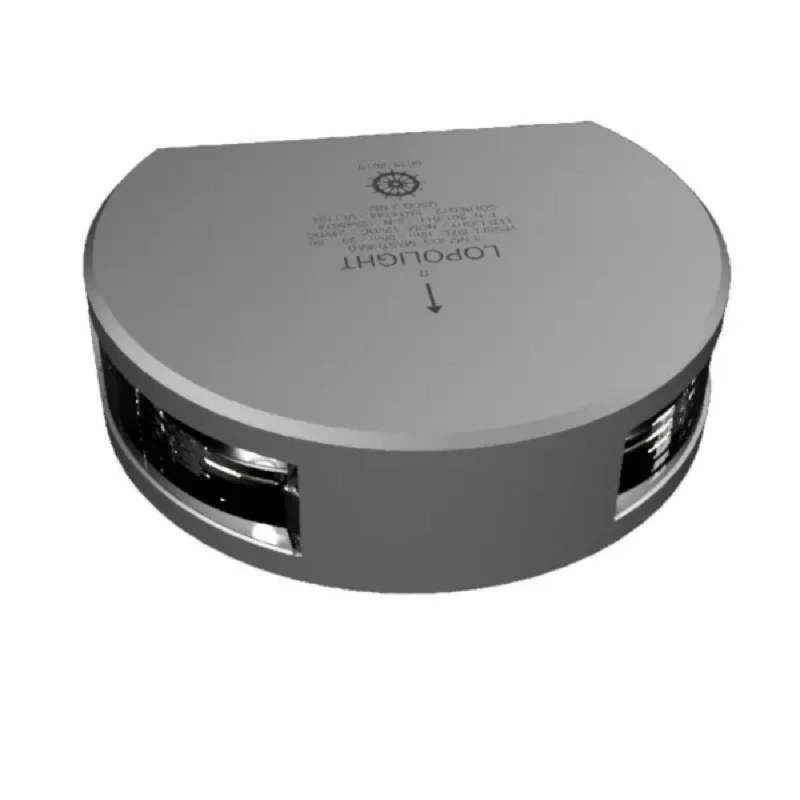

Lopolight 201-011 - Navigation Light 3NM 225° White, Masthead, Silver Anodized
Compact and durable navigation light for vessels sized 12 to 20 meters, designed for vertical mounting with a pre-installed 0.75 meter shielded marine-grade cable. Suitable for harsh marine environments with its silver anodized aluminum housing and high ingress protection.
- Product Number: 201-011
- Light Color: White
- Visibility: 3 nautical miles
- Intensity: >15 candela
- Mounting: Vertical
- Connection: 0.75 meter cable
- Dimensions (Metric): 74.55 x 28 x 73.16 mm
- Dimensions (Imperial): 2.9" x 1.1" x 2.88"
- Weight: 0.43 Kg / 15.17 Oz
- Operating Voltage: 10-32VDC
- Power Draw: 3 Watts
- Current Consumption at 12VDC: 232 mA
- Current Consumption at 24VDC: 127 mA
- Operating Temperature: -25°C to 55°C
- IP Rating: IP68
- Material Composition:
- Silver anodized aluminum (25µ)
- PMMA lens
- A4 stainless steel screws
- Epoxy and Polyurethane
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Certification: DNV
- Standards Met: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in Package:
- 1 Navigation light with 0.75m pre-cabled connection
- 2 Mounting screws (M6 x 8 mm)
- Installation guide
- EAN: 5704438009707
- UPC Code: 879343009700
- Article Number: 186711AD
- Supplier Article Code: 201-011
-
