SKU:
BP 186707AGWZBC
$ 1.552,22
1-2 weeks delivery time
-
+
The Lopolight 201-007W-B TB is a navigation light designed for horizontal mounting on a POM base. It is equipped with an IP68 waterproof base, ensuring durability in harsh marine conditions. The light is certified by DNV and complies with multiple international standards. It operates in temperatures from -25°C to 55°C and consumes 2.6W of power, making it a reliable choice for marine navigation.
- Description
- Ask a Question
-

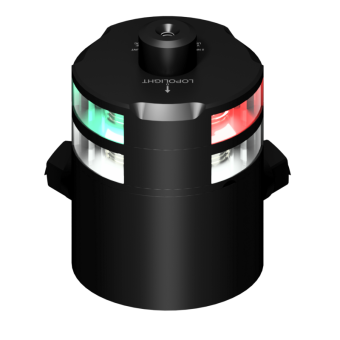

Lopolight 201-007W-B TB - Navigation Light 2NM Tri-Anchor W/Windex W/IP68 Base & Connector
This navigation light is designed to be mounted horizontally on a POM base and is equipped with an IP68 waterproof base, ensuring durability in harsh marine conditions.
- Number: 201-007W-B TB
- Dimensions (Metric): Ø92.5mm x 36mm
- Dimensions (Imperial): Ø3.6" x 1.4"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included In Package: 1 Navigation light (precabled with 0.75m shielded marine grade cable), Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2.6W
- Current Consumption (mA @ 12VDC): 150mA
- Current Consumption (mA @ 24VDC): 81mA
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.94 kg (33.25 oz)
- EAN: 5704438043374
- UPC Code: 879343043506
- Connection: 0.7m cable
-
