SKU:
BP 201-007-IR-S-B TB
$ 4.814,95
1-2 weeks delivery time
-
+
The Lopolight 201-007-IR-S-B TB combines tricolor illumination with an IR strobe for horizontal mounting. It is IP68 waterproof, made of silver anodized aluminum, draws 2.6W, and is suitable for marine conditions. Its EAN code is 5704438043367.
- Description
- Ask a Question
-

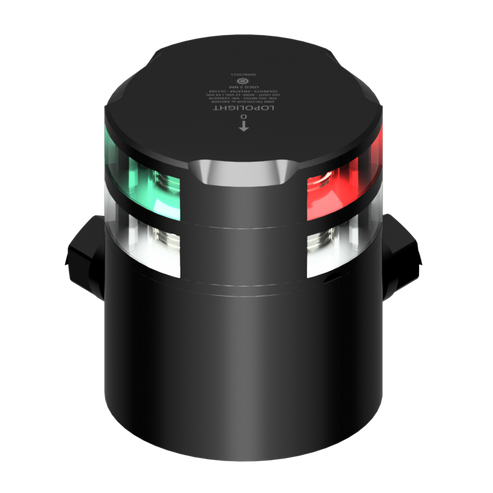

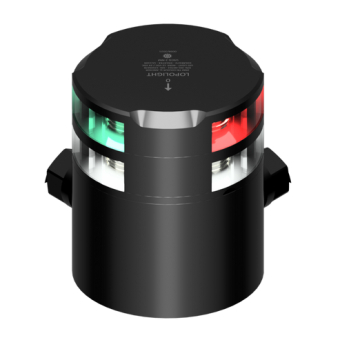

Lopolight 201-007-IR-S-B TB - Navigation Light 2NM Tricolor W/IR Strobe W/IP68 Base & Conn
This horizontally mounted navigation light combines tricolor illumination with an IR strobe, designed for reliable marine use. Its IP68 waterproof base ensures durability in harsh conditions, making it suitable for various vessels.
- Number: 201-007-IR-S-B TB
- Dimensions (metric): Ø92,5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in package: 1 Navigation light with 0.75 m precabled shielded marine grade cable, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32VDC
- IP rating: IP68
- Power draw: 2.6 W
- Connection: 0.7m cable with connector and cable gland (4-14mm)
- Current consumption: 150 mA @ 12VDC, 81 mA @ 24VDC
- Minimum feed wire gauge: 0.5mm² (AWG22)
- EAN: 5704438043367
- UPC Code: 879343043490
-
