SKU:
BP 201-007-B TB
$ 1.331,53
1-2 weeks delivery time
-
+
The Lopolight 201-007-B TB navigation light delivers 2NM visibility with red, green, and white illumination, ideal for horizontal mounting on vessels 12-20M. It features a black anodized aluminum body, IP68 waterproof base, and plug connector, drawing 2.6W. Certified by DNV, its EAN code is 5704438043350.
- Description
- Ask a Question
-

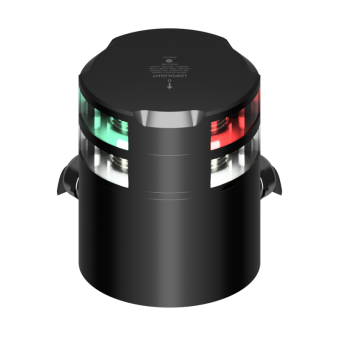

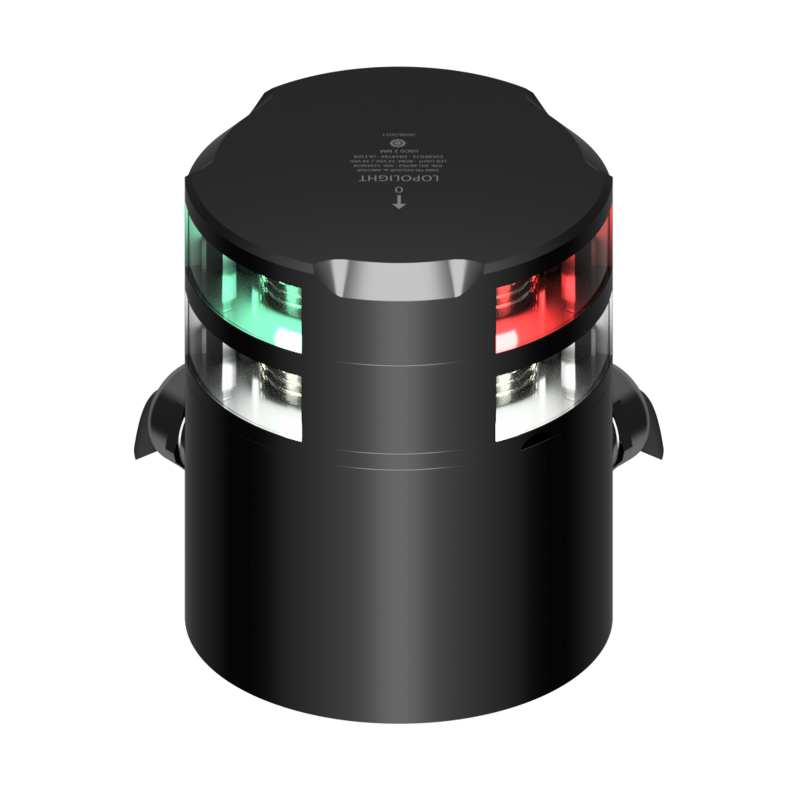

Lopolight 201-007-B TB - Navigation Light 2NM Tri-Anchor, Black W/IP68 Base & Connector
This black navigation light offers 2NM visibility with red, green, and white colors, ideal for horizontal mounting on vessels between 12-20M.
- Mounting: Horizontally on POM base
- IP68 waterproof base
- Cable gland for 4-14mm cable with connector
- Product Number: 201-007-B TB
- Light Color: Red, Green, White
- Dimensions (metric): Ø92,5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2NM
- Included in Package: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power draw: 2.6 W
- Connection: Plug connector
- Current consumption: 150 mA @ 12VDC, 81 mA @ 24VDC
- Vessel size: 12-20M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 0.91 Kg / 32.21 Oz
- EAN: 5704438043350
- UPC Code: 879343043483
- IP rating: IP68
-
