SKU:
BP 186703AFB
$ 665,79
1-2 weeks delivery time
-
+
The Lopolight 201-003-FB is a navigation light designed for optimal visibility and reliability, ideal for vessels ranging from 12 to 20 meters. It features red and green sidelights with a 2 nautical mile visibility, operates in temperatures from -25°C to 55°C, and is certified by multiple international standards. The light is horizontally mounted with a flat base POM system and includes a 2.5-meter shielded marine-grade cable. It is made of durable materials, has an IP68 rating, and consumes 2.2W of power.
- Description
- Ask a Question
-

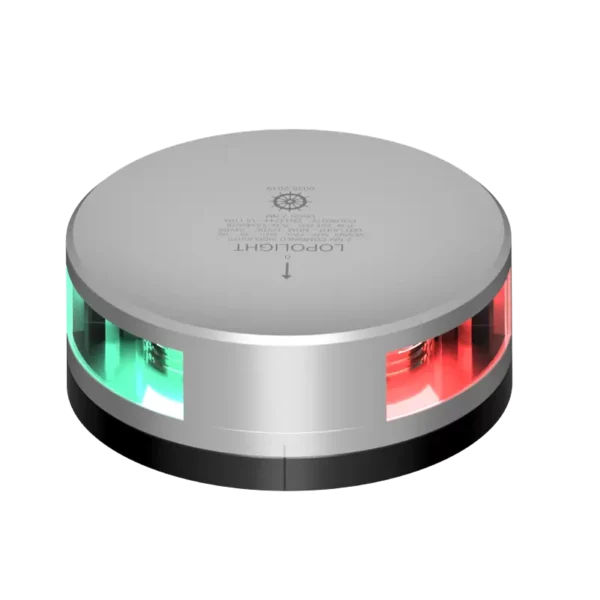

Lopolight 201-003-FB - Navigation Light 2NM 2X112,5° Red/Green Sidelight, Silver W/FB Base
This navigation light is designed for optimal visibility and reliability, ideal for vessels ranging from 12 to 20 meters. It comes pre-cabled and ready for installation with a 2.5-meter shielded marine-grade cable. The light is mounted horizontally and includes a flat base POM mounting system for secure attachment.
- Light Color: Red, Green
- Dimensions (metric): Ø92,5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: Certified by DNV, approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2 nautical miles
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2.2W
- Current Consumption at 12VDC: 163mA
- Current Consumption at 24VDC: 90mA
- Vessel Size: 12-20 meters
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.55 kg (19.26 oz)
- Included in Package: 1 Navigation Light, precabled with 2.5-meter shielded marine-grade cable, Installation guide
- EAN: 5704438043282
- UPC Code: 879343043414
- Article Number: 186703AFB
- Packaging Unit: 1 piece
- Supplier Article Code: 201-003-FB
-
