SKU:
BP 201-003+012-FB 6M
$ 1.575,82
1-2 weeks delivery time
-
+
The Lopolight 201-003+012-FB 6M navigation light provides 2NM visibility with red and green colors, horizontally mounted with a 6m cable. Constructed from silver anodized aluminum with a PMMA lens and stainless steel screws, it is certified by DNV and approved to multiple maritime standards. It operates on 10-32VDC, draws 2.6W, and has an IP68 rating. Its EAN code is 5704438043312.
- Description
- Ask a Question
-

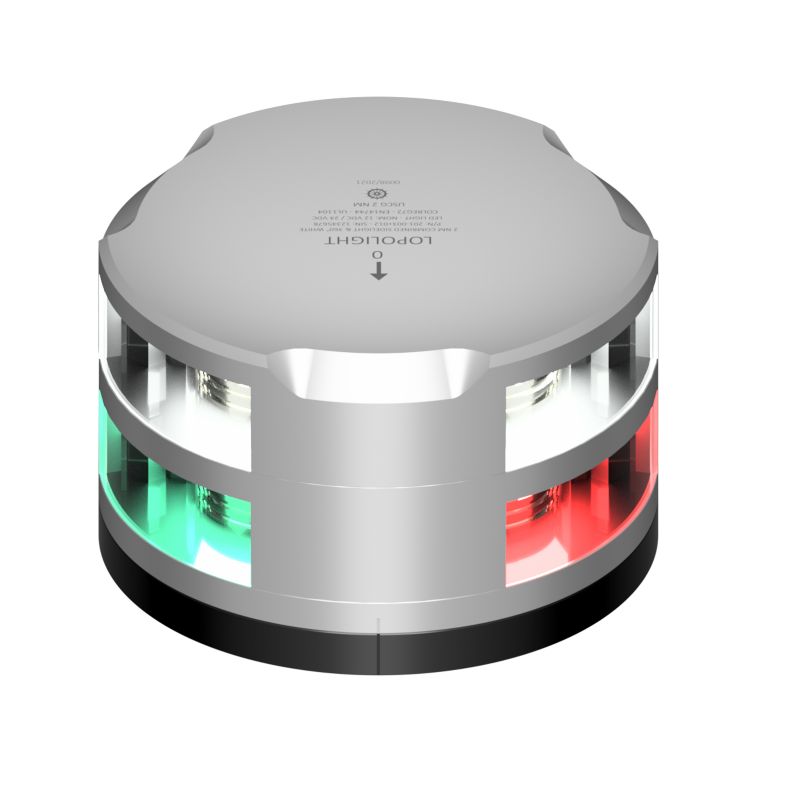

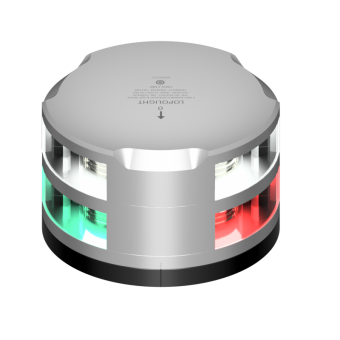

Lopolight 201-003+012-FB 6M - Navigation Light 2NM Comb Side + 360° White, 6M W/FB Base
- Horizontally mounted with 6m cable
- FB (flat base) POM mounting system
- Number: 201-003+012-FB 6M
- Light Color: Red, Green
- Dimensions metric: Ø92,5mm x 58mm
- Dimensions imperial: Ø3.6" x 2.3"
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included In Package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438043312
- IP rating: IP68
- Power draw (W): 2.6
- UPC Code: 879343043445
- Connection: 6m cable
- Current consumption (mA @ 12VDC): 163
- Current consumption (mA @ 24VDC): 90
- Vessel size: 12-20M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight (Kg): 1.07 Kg
- Weight (Oz): 37.86 Oz
-
