SKU:
BP 200-064-PRO-I-EX
$ 2.665,20
1-2 weeks delivery time
-
+
The Lopolight 200-064-PRO-I-EX is a single 360° white navigation light for EX Zone 1 & 2 and ice-class operation. Featuring de-icing, black anodized construction, IP68 protection, and 11 W power draw, it provides 5NM visibility and weighs 1.3 kg.
- Description
- Ask a Question
-

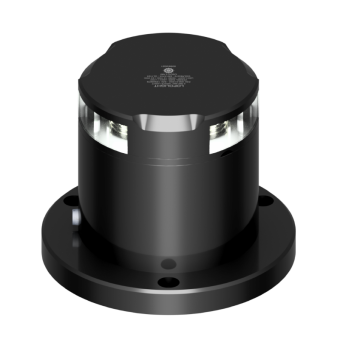

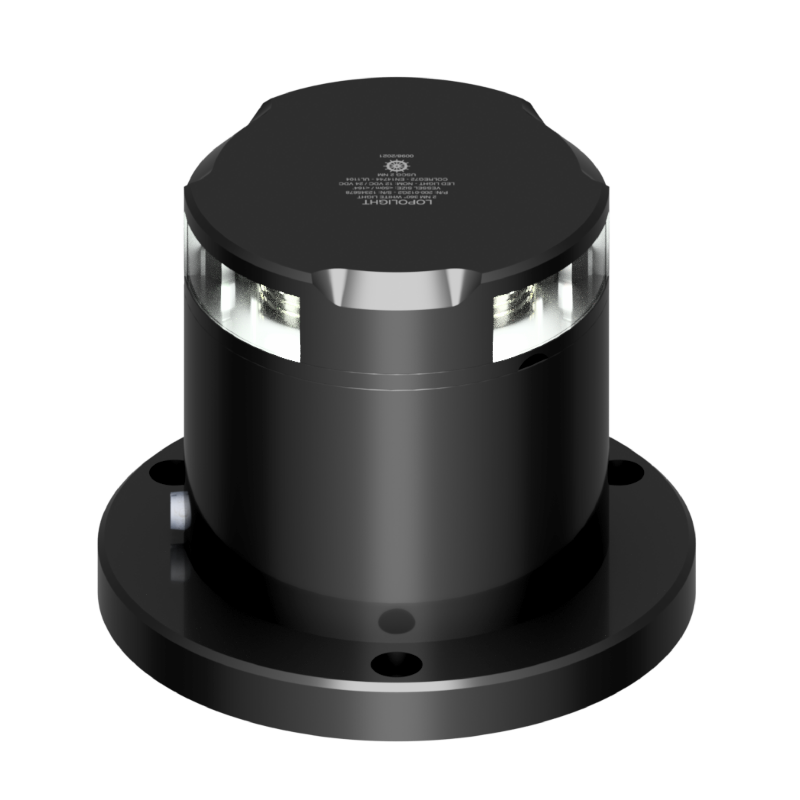

Lopolight 200-064-PRO-I-EX - Navigation Light 5NM 360° White, Single, EX Zone 1&2, Ice-Class
Reliable navigation light designed for extreme conditions, certified for hazardous environments and ice-class operations.
- Article number: 200-064-PRO-I-EX
- Certified for use in ATEX Zone 1 & 2
- Built-in de-icing function
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable direction side, includes HDPE base plate
- No cable glands or ground strap included
- Light Color: White
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 5nm
- Included in package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438040793
- IP rating: IP68
- Power draw: 11 W
- Connection: Plug connector
- Current consumption: 800 mA @ 12VDC, 520 mA @ 24VDC
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: All Sizes
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.3 Kg (45.85 Oz)
- UPC Code: 879343040925
-
