SKU:
BP 200-064-PRO-EX
$ 1.903,72
1-2 weeks delivery time
-
+
The Lopolight 200-064-PRO-EX is a single 360° white navigation light for EX Zone 1 & 2 hazardous environments. It features black anodized aluminum construction, 5NM visibility, 11 W power draw, built-in plug connector, and weighs 1.3 kg with ATEX and IEC Ex certification.
- Description
- Ask a Question
-

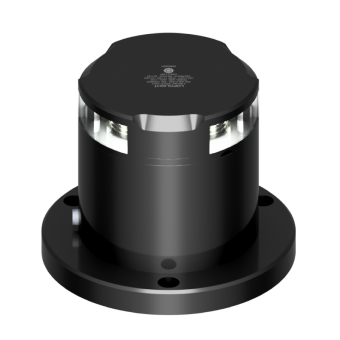

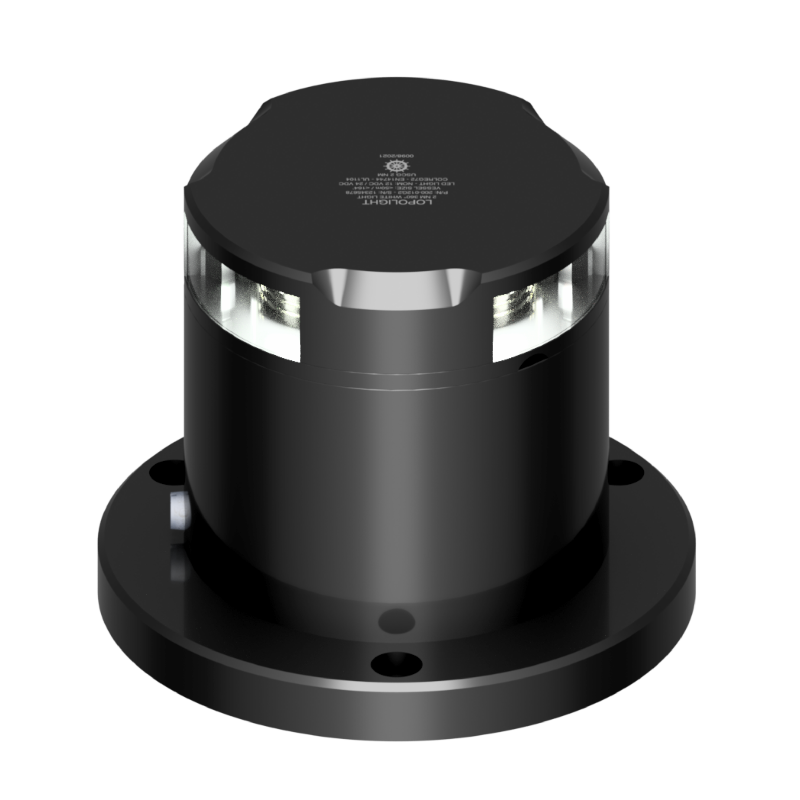

Lopolight 200-064-PRO-EX - Navigation Light 5NM 360° White, Single, Black, EX Zone 1&2
This high-performance navigation light is designed for demanding marine environments, providing reliable 360° white illumination with extended visibility and ATEX certification for hazardous areas.
- Article number: 200-064-PRO-EX
- Certified for ATEX Zone 1 & 2 use
- Mounted horizontally on 400-037-B aluminum base (IP68)
- Cable routed to the side, includes HDPE base plate
- No cable glands or ground strap included
- Light Color: White
- Dimensions (metric): Ø92.5mm x 103.5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 5 nautical miles
- Included in package: 1 navigation light, installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 20-32VDC
- EAN: 5704438040564
- IP rating: IP68
- Power draw: 11 W
- Connection: Plug connector
- Current consumption @12VDC: 800 mA
- Current consumption @24VDC: 520 mA
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: All sizes
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.3 Kg (45.85 Oz)
-
