SKU:
BP 200-016G2-WH
$ 548,23
1-2 weeks delivery time
-
+
The Lopolight 200-016G2-WH is a red vertical navigation light with a durable white ceramic coating and a 0.75-meter marine-grade precabled cable. It offers 2 NM visibility, operates between 10-32VDC, consumes 2W, and is certified by DNV for vessels up to 50 meters.
- Description
- Ask a Question
-

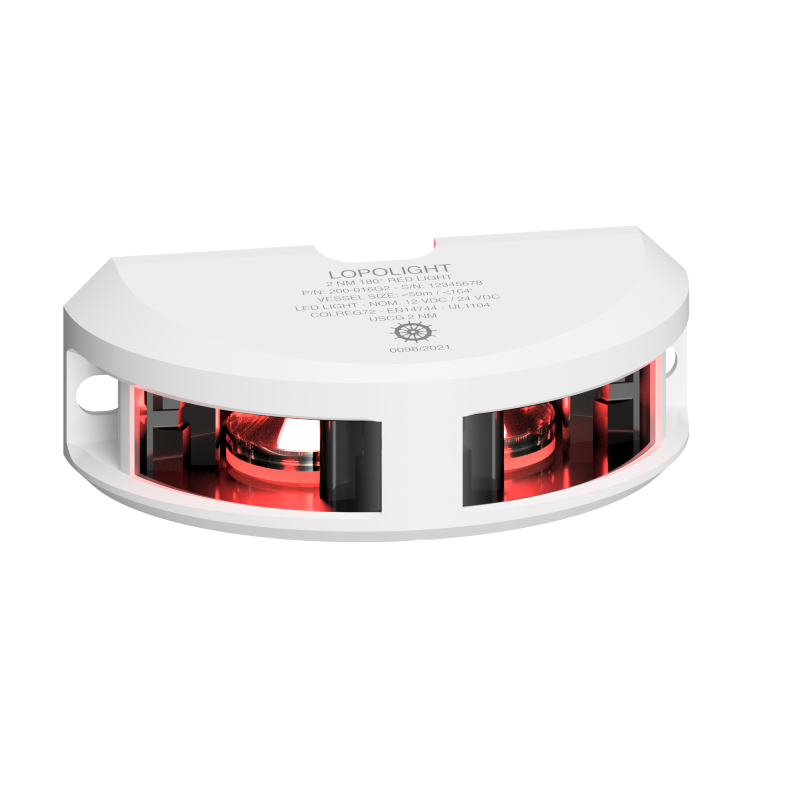

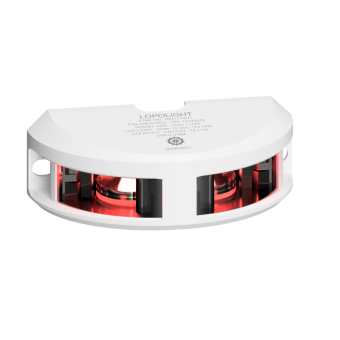

Lopolight 200-016G2-WH - Navigation Light 2NM 180° Red, White Ceramic Coated
- This vertically mounted navigation light features a durable white ceramic coating and comes with a 0.75-meter precabled shielded marine-grade cable for easy installation.
- Light Color: Red
- Dimensions (metric): 104 mm x 37 mm x 45 mm
- Dimensions (imperial): 4.0" x 1.4" x 1.8"
- Certification: Approved by DNV
- Intensity: >5.4cd
- Visibility: 2 nautical miles
- Included in Package: 1 Navigation light, precabled with 0.75 meter shielded marine grade cable, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2 W
- Connection: 0.7m cable
- Current Consumption: 145 mA @ 12VDC, 60 mA @ 24VDC
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Vessel Size Compatibility: Under 12M, 12-20M, 20-50M
- Weight: 0.27 Kg / 9.49 Oz
- IP Rating: IP68
- EAN: 5704438039155
- UPC Code: 879343039288
-
