SKU:
BP 101-001 6M
$ 456,93
1-2 weeks delivery time
-
+
The Lopolight 1NM 112.5° Starboard Light provides reliable navigation visibility up to 1 nautical mile for vessels under 12 meters. It features a silver anodized aluminum body, a 6-meter cable, and multiple certifications, operating at 10-32 VDC with a power draw of 1.1 W. The article number is 101-001 6M.
- Description
- Ask a Question
-

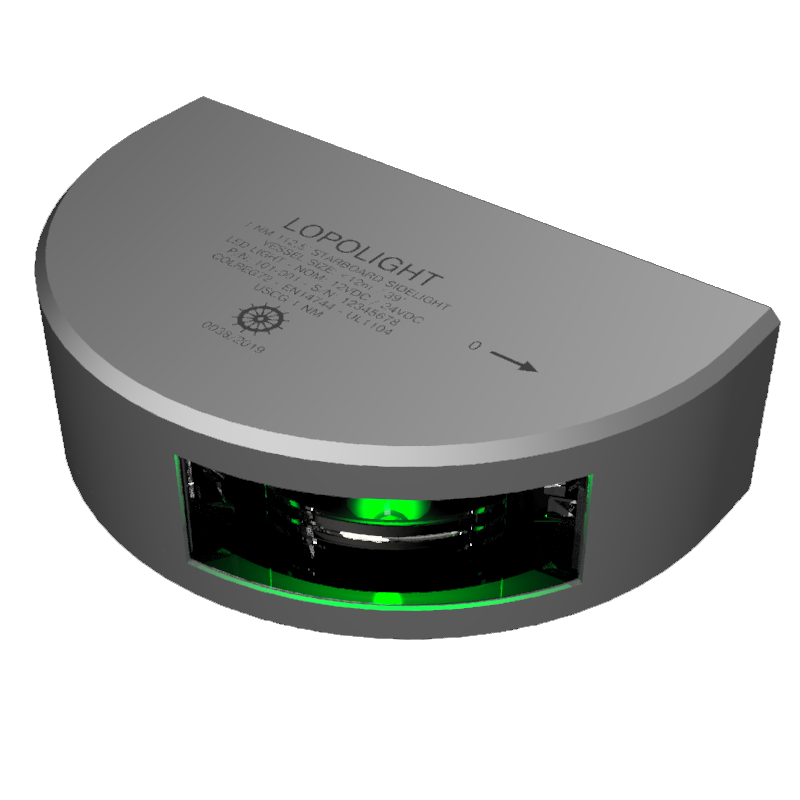

Lopolight 1NM 112.5° Starboard Light Silver Green Cable 6M
This starboard navigation light delivers reliable visibility with a 1 nautical mile range, designed for vessels under 12 meters. It features a silver anodized aluminum body and includes a 6-meter cable for easy installation.
- Dimensions (metric): 92.5 x 28 x 49.7 mm
- Dimensions (imperial): 3.6" x 1.1" x 1.95"
- Certified by DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 1 nautical mile
- Included: 1 navigation light precabled with 2.5 meter shielded marine grade cable, installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- Power draw: 1.1 W
- Current consumption: 66 mA @ 12VDC, 34 mA @ 24VDC
- Connection: 2.5 m cable
- Minimum feed wire gauge: 0.5 mm² AWG22
- Weight: 0.61 kg (21.51 oz)
- IP rating: IP68
- EAN: 5704438016163
- UPC Code: 879343016173
- Article number: 101-001 6M
- Packaging unit: Piece
- Supplier article code: 101-001 6M
-
