SKU:
BP 101-002-B-SUB
$ 526,54
1-2 weeks delivery time
-
+
The Lopolight 1NM 112.5° Red Port Light is designed for vessels under 12 meters, providing over 1.2 candela intensity and 1 nautical mile visibility with a black anodized finish. It comes with a 2.5-meter shielded marine grade cable, operates from -25°C to 55°C, and consumes 1.1 watts at 10-32 VDC. Certified by DNV and approved by several maritime authorities, it features durable aluminum construction and an IP68 rating for reliability.
- Description
- Ask a Question
-

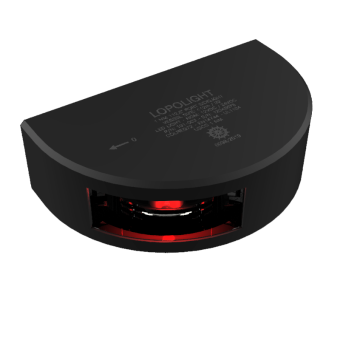

Lopolight 1NM 112.5° Red Port Light Black Anodized
This red port navigation light is engineered for vessels under 12 meters, offering over 1.2 candela intensity and 1 nautical mile visibility. It features a black anodized finish and comes with a 2.5-meter shielded marine grade cable.
- Light color: Red
- Dimensions (metric): 92.5 x 28 x 49.7 mm
- Dimensions (imperial): 3.6" x 1.1" x 1.95"
- Certified by DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility range: 1 nautical mile
- Included: 1 navigation light precabled with 2.5 meter shielded marine grade cable, installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Vertical
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32 VDC
- Power draw: 1.1 W
- Current consumption: 60 mA @ 12VDC, 32 mA @ 24VDC
- Connection: 2.5 m cable
- Minimum feed wire gauge: 0.5 mm² AWG22
- Weight: 0.38 kg (13.40 oz)
- IP rating: IP68
- EAN: 5704438019133
- UPC Code: 879343019266
- Article number: 101-002-B-SUB
- Packaging unit: Piece
-
