SKU:
BP 186609AGWCFB22
$ 1.228,84
1-2 weeks delivery time
-
+
The Lopolight 101-009W-FB 22M is a tri-color navigation light with a Windex mounting option, designed for vessels under 12 meters. It features red, green, and white lights with 1nm visibility and is certified by DNV and other international bodies. This model operates in temperatures from -25°C to 55°C and consumes 2.6W of power.
- Description
- Ask a Question
-

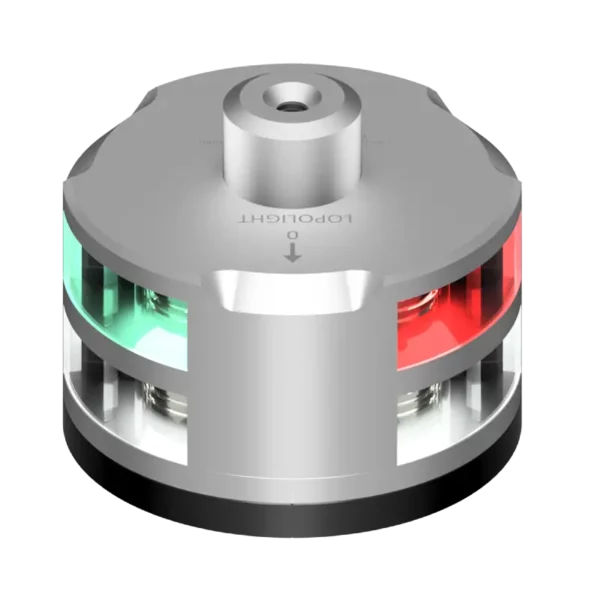

Lopolight 101-009W-FB 22M - Navigation Light Tri-anchor, Windex Mounting + Light With FB Base
This navigation light is engineered for use with windscreen mounts, providing a durable and highly visible solution for vessels under 12 meters. It delivers exceptional performance with a tri-color configuration that ensures compliance with international maritime regulations.
- Number: 101-009W-FB 22M
- Light Color: Red, Green, White
- Dimensions (metric): Ø92.5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 1nm
- Included in Package: 1 Navigation light (pre-cabled with 0.75-meter shielded marine grade cable), Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2.6W
- Current Consumption (mA @ 12VDC): 150mA
- Current Consumption (mA @ 24VDC): 81mA
- Vessel Size: Under 12M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.97 Kg (69.38 Oz)
- EAN: 5704438042711
- UPC Code: 879343042844
- Connection: 0.7m cable
-
