SKU:
BP 186609AGFB
$ 852,22
1-2 weeks delivery time
-
+
The Lopolight 101-009-FB is a tri-color navigation light for vessels under 12 meters, similar to the 101-009-FB 22M but with a different weight and EAN code. It features red, green, and white lights with 1nm visibility and is designed for horizontal mounting. This model is certified by DNV and other international bodies, has an IP68 rating, and includes a pre-cabled light with a 0.75-meter cable and an installation guide.
- Description
- Ask a Question
-

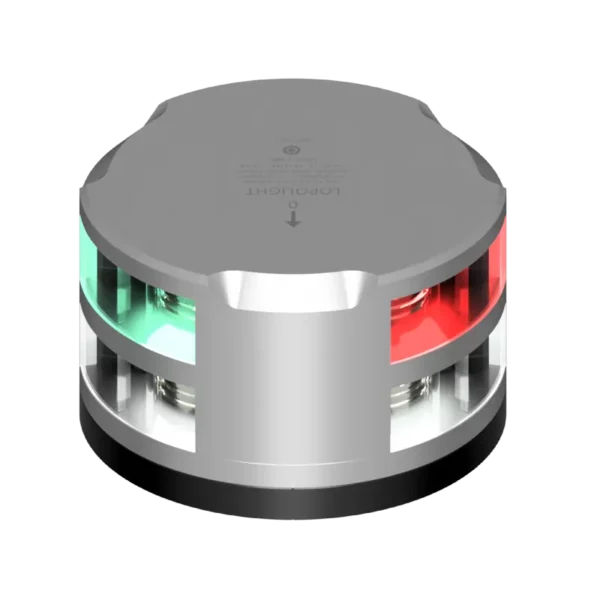

Lopolight 101-009-FB - Navigation Light 1NM Tri-color/Anchor, Silver With FB Base
The Lopolight 101-009-FB Navigation Light provides an effective and reliable solution for marine navigation. This tri-color light (Red, Green, White) is designed for vessels under 12 meters, offering clear visibility up to 1nm. The compact size and robust materials make it perfect for horizontal mounting, while its silver anodized aluminum ensures durability in marine environments.
- Light Color: Red, Green, White
- Dimensions: Ø92.5mm x 36mm (3.6" x 1.4")
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 1nm
- Included in Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2.6W
- Connection: 0.7m cable
- Current Consumption (mA @ 12VDC): 150mA
- Current Consumption (mA @ 24VDC): 81mA
- Vessel Size: Under 12M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.73kg (25.66oz)
- EAN: 5704438042674
- UPC Code: 879343042806
-
