SKU:
BP 186609AGCFB22
$ 1.091,46
1-2 weeks delivery time
-
+
The Lopolight 101-009-FB 22M is a tri-color navigation light for vessels under 12 meters, featuring red, green, and white lights. It is designed for horizontal mounting and is built with a durable silver anodized aluminum finish. The light is certified by DNV and other international bodies, operates in temperatures from -25°C to 55°C, and consumes 2.6W of power.
- Description
- Ask a Question
-

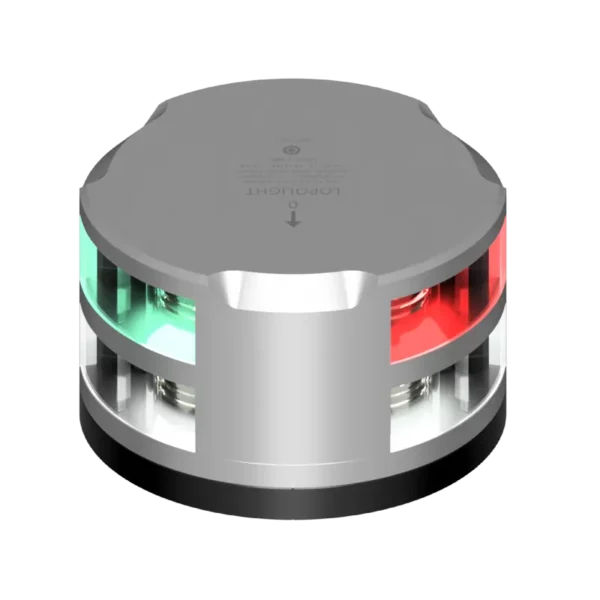

Lopolight 101-009-FB 22M - Navigation Light Tri-color/Anchor, Silver With FB Base
This Lopolight 101-009-FB 22M Navigation Light is designed to provide essential lighting for vessels under 12 meters in length. With a durable silver anodized aluminum finish, this navigation light features a tri-color (Red, Green, White) combination that ensures clear visibility. The light is mounted horizontally and is ideal for various marine applications.
- Light Color: Red, Green, White
- Dimensions: Ø92.5mm x 36mm (3.6" x 1.4")
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 1nm
- Included in Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum (25µ), PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2.6W
- Connection: 0.7m cable
- Current Consumption (mA @ 12VDC): 150mA
- Current Consumption (mA @ 24VDC): 81mA
- Vessel Size: Under 12M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.94kg (68.44oz)
- EAN: 5704438042681
- UPC Code: 879343042813
-
