SKU:
BP 186605AFBW
$ 978,86
1-2 weeks delivery time
-
+
The Lopolight 101-005W-FB is a tri-color navigation light with a Windex mounting option, providing additional flexibility for installation. It is designed for vessels under 12 meters and features red, green, and white lights with 1nm visibility. This model is certified by DNV and other international bodies, operates in temperatures from -25°C to 55°C, and consumes 2.6W of power.
- Description
- Ask a Question
-

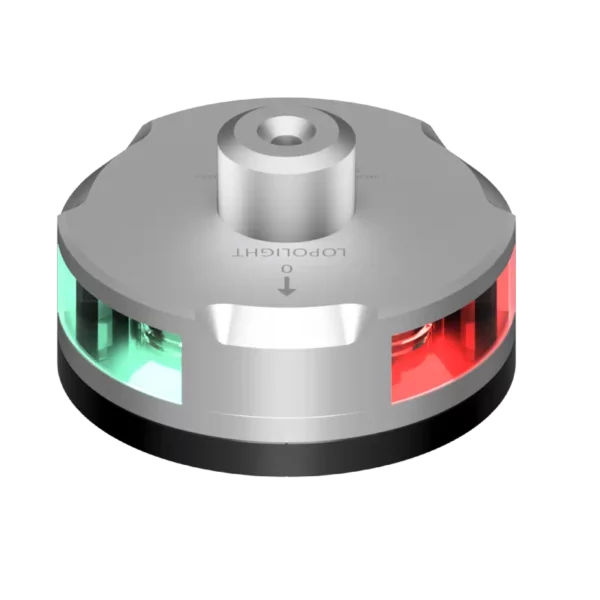

Lopolight 101-005W-FB - Navigation Light Tri-color With Windex Mounting+Light, Silver With FB Base
This navigation light features a tri-color configuration and is designed for vessels under 12 meters. It comes with a Windex mounting option, providing additional flexibility for installation.
- Light Color: Red, Green, White
- Dimensions (metric): Ø92.5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Visibility: 1nm
- Certification: DNV, COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., LR
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2.6W
- Current Consumption: 150mA @ 12VDC, 81mA @ 24VDC
- Vessel Size: Under 12M
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Weight: 0.48 kg (16.82 oz)
- Connection: 0.7m marine-grade shielded cable
- Included in Package: 1 Navigation light, pre-cabled with 0.75 meter shielded marine grade cable, Installation guide
- EAN: 5704438042650
- UPC Code: 879343042783
- Article Number: 186605AFBW
- Packaging Unit: 1 piece
- Supplier Article Code: 101-005W-FB
-
