SKU:
BP 186603AZFBR
$ 684,76
1-2 weeks delivery time
-
+
The Lopolight 101-003-FB-REVERSE is similar to the 101-003-FB but with an upside-down mounting orientation. It is designed for vessels under 12 meters and provides clear red and green sidelights with 1nm visibility. This model is certified by DNV and meets multiple international standards, ensuring it is suitable for various marine environments.
- Description
- Ask a Question
-

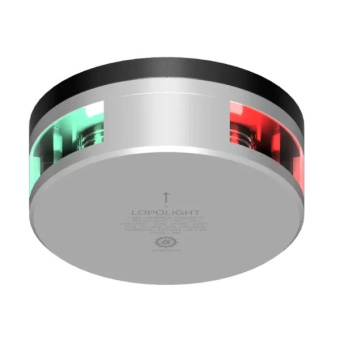

Lopolight 101-003-FB-REVERSE - Navigation Light 1NM 2x112,5° Red/Green - Upside-down w/FB Base
The Lopolight 101-003-FB-REVERSE model offers the same excellent performance and certifications as the standard version, with the distinction of an upside-down mounting orientation. Designed for vessels under 12 meters, this navigation light provides clear red and green sidelights with 1nm visibility, making it an ideal choice for various marine applications.
- Number: 101-003-FB-REVERSE
- Light Color: Red, Green
- Dimensions (metric): Ø92,5mm x 58mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 1nm
- Included In Package: 1 navigation light, precabled with 2.5-meter shielded marine-grade cable, installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 1.4W
- Current Consumption: 87mA @ 12VDC, 48mA @ 24VDC
- Vessel Size: Under 12M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.55 kg (19.32 oz)
- EAN: 5704438042629
- UPC Code: 879343042752
- Connection: 2.5m cable
-
