$ 2.905,44
1-2 weeks delivery time
-
+

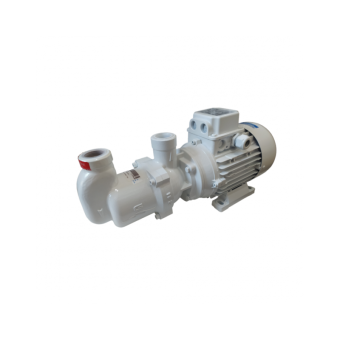

The Gianneschi MV44G-230/400V is a robust bronze single screw pump with a stainless steel rotor and Buna Nitrile stator, designed for precise fluid handling of dirty and viscous fluids, powered by a 0.75 kW three-phase motor with 1-inch BSP ports.
- Description
- Ask a Question
-
Gianneschi EL/Pump - Single Screw MV44 G, 230/400V, T, 50HZ 0.75KW
The Gianneschi MV44G-230/400V is a robust Bronze MVG Series Single Screw Pump with a Buna Nitrile stator and a Stainless Steel screw impeller. Designed for precision fluid handling, it features 1 Inch BSP inlet and outlet ports and is powered by a 0.75 KW (1 HP), 230/400 volts AC, 50/60 Hz, three-phase motor.
- Type: Positive Displacement volumetric pump delivering exact fluid volumes continuously
- Operation: Fluid is sucked into the chamber creating a vacuum, then expelled to increase pressure
- Rotor: Metal single-thread 316 Stainless Steel helical rotor driven inside a Buna Nitrile rubber stator with double-thread helical profile
- Suitable for: Dirty, viscous fluids and fluids with suspended solids
- Self-priming: Requires priming before startup and installation of check valve on suction pipe recommended
- Materials: Bronze pump body, 316 Stainless Steel rotor, Buna-N stator and seal
- Maintenance: Easy to service with replaceable rubber stator, universal joint, mechanical shaft seal, and motor brushes
- Protection & Insulation: F class insulation, IP 54/55 protection
- Ports: 1 Inch BSP inlet and outlet
- Motor power and specs: 0.75 KW (1 HP), 230/400 volts AC, 50/60 Hz, three-phase
- Article number: 034460400
- Packaging: Piece
- Supplier code: 01GMV343G
- EAN code: 6095514296258
-
