The Gianneschi ECOJET-1B-24V is a bronze jet pump with a brass impeller, powered by a 0.3 KW (0.4 HP), 2900 RPM, 24 V DC motor. It is designed for clean liquids and operates under specific conditions including a max static pressure of 8 Bar, suction depth up to 8 meters, and liquid temperatures up to 50°C. Installation requires a dry, ventilated environment and the pump should be mounted horizontally on a solid surface, with several recommendations for piping, grounding, and maintenance.
- Description
- Ask a Question
-

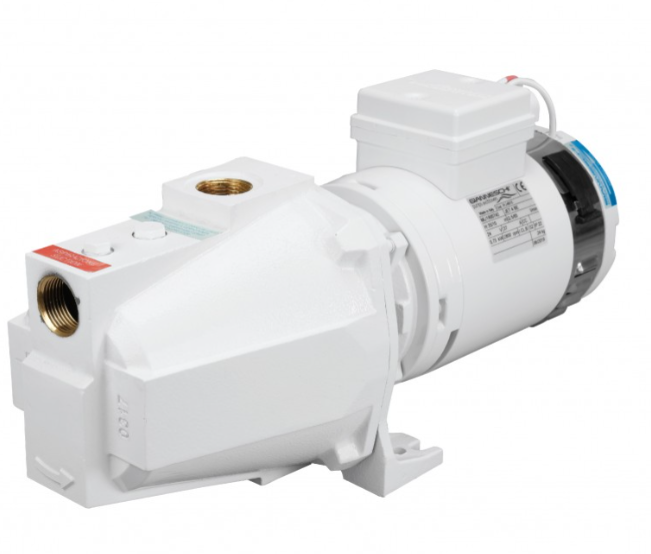

Gianneschi 01EJ111T - Ecojet-1B-24V Jet Pump 0.3 KW 0.4 HP 2900RPM
The Gianneschi ECOJET-1B-24V is a bronze jet pump with a brass impeller, paired with a 0.3 KW (0.4 HP), 2900 RPM, 24 V DC motor. Designed for clean liquids, this pump operates within specific limits: max static pressure of 8 Bar (115 PSI), suction depth up to 8 meters (25 feet), and liquid temperatures up to 50°C. Voltage variation for the motor is allowed within ±5%. Installation requires a dry, ventilated environment with ambient temperature up to 40°C, placing the pump horizontally on a solid surface.
- Pump body: Bronze
- Impeller: Brass
- Shaft: 316 Stainless Steel
- Motor: 0.3 KW (0.4 HP), 2900 RPM, 24 V DC
- Threaded ports require three-piece pipe unions for easy maintenance
- Suction pipe must be airtight with an upward slope
- Strainer recommended on suction line to prevent debris damage
- Vacuum gauge and check valve advised for performance monitoring
- Ground mains supply as per local regulations
- Install vibration dampers and secure the pump with bolts
- Article code supplier: 01EJ111T
-
