SKU:
BP SCU16VFDHE-48
$ 10.582,88
1-2 weeks delivery time
-
+
The Frigomar SCU16VFDHE-48 is a 16,000BTU 48V DC high-efficiency self-contained unit, engineered for larger cooling and heating needs with 970 W max input power, 20 A max current, and detailed seawater and air specifications.
- Description
- Ask a Question
-

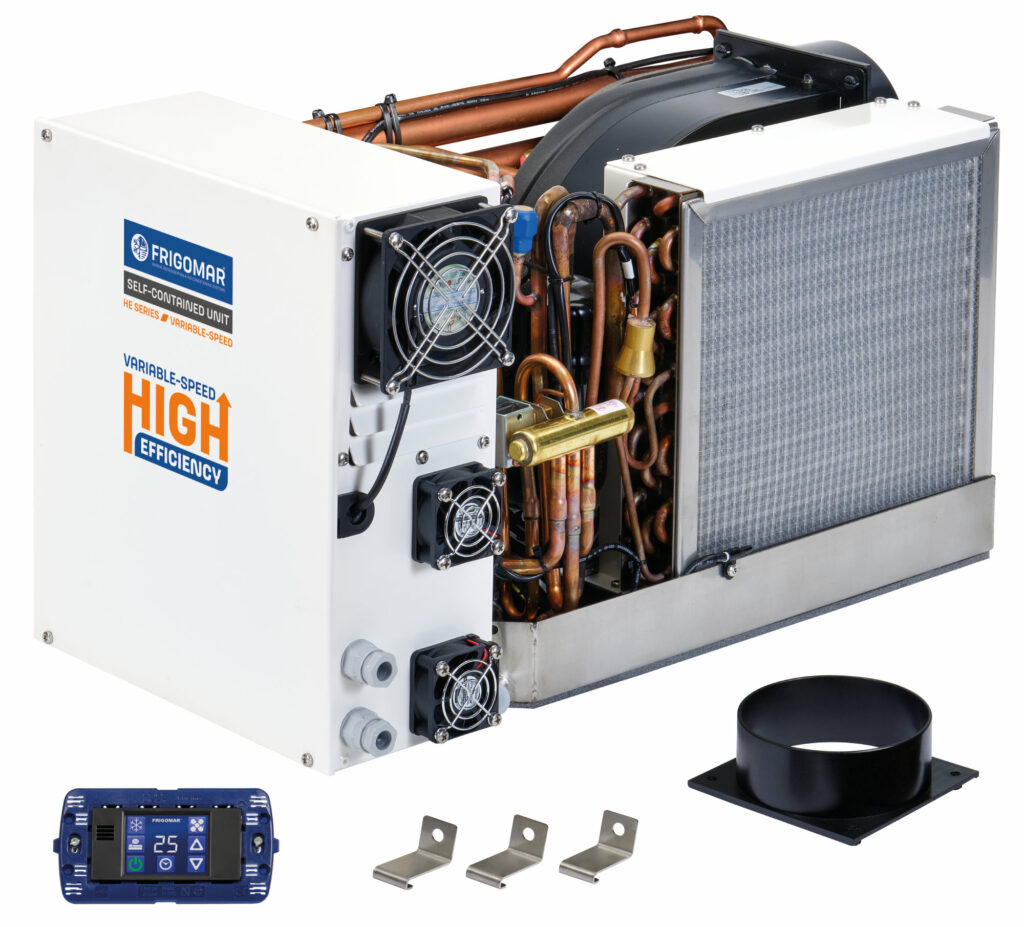

Frigomar SCU16VFDHE-48 - Self Contained Unit 16000BTU 48V DC High Efficiency
Engineered for larger cooling and heating needs, this self-contained unit delivers powerful performance while maintaining energy efficiency. Perfect for 48V DC installations, it supports stable operation under varied conditions.
- Width: 500 mm
- Height: 336 mm
- Depth: 290 mm
- Weight (electrical panel included): 29,5 kg
- Electrical panel dimensions: 275 x 321,5 x 126 mm
- Voltage / phase / frequency: 48 V
- Maximum cooling/heating capacity: 16.000 BTU/h
- Maximum input power: 970 W
- Maximum current: 20 A

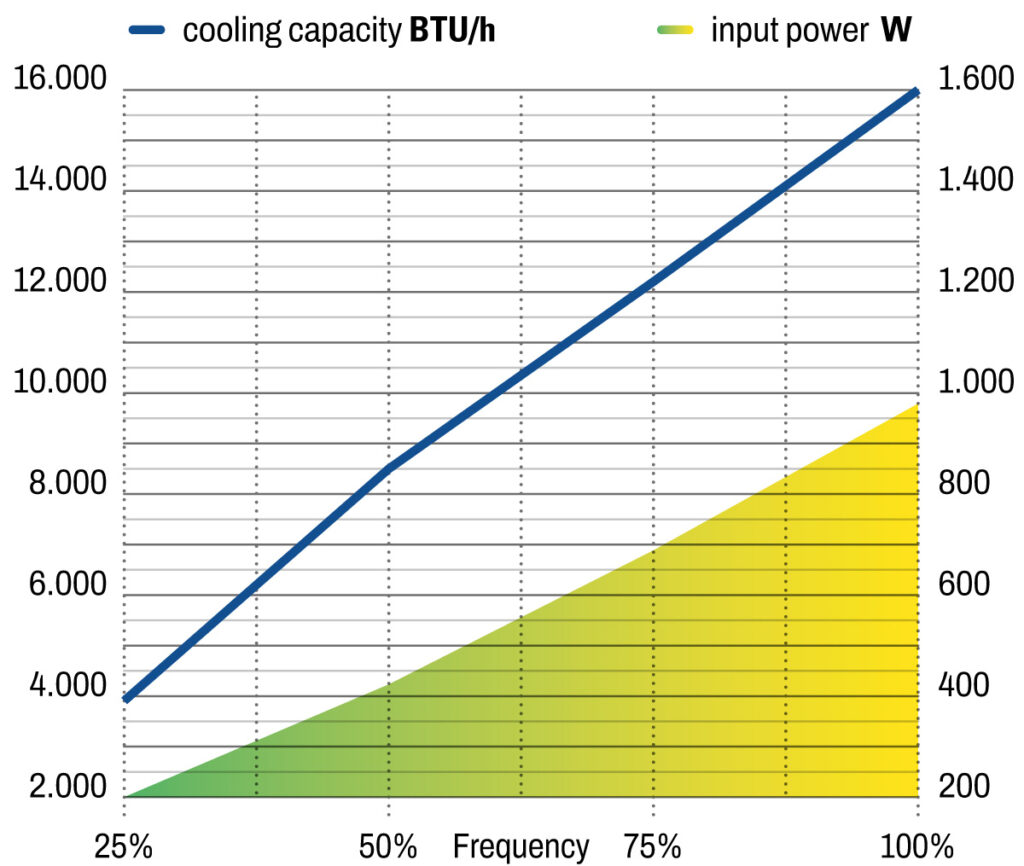

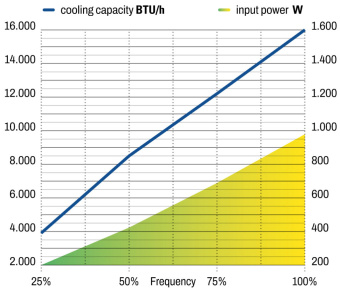

- Cooling capacity ECO mode*: 3.900 BTU/h
- Input power ECO mode*: 230 W
- Max seawater flow-pressure drop**: 1,4 m³/h - 6,2 m H2O
- Min seawater flow-pressure drop**: 1,3 m³/h - 5,7 m H2O
- Air exit duct diameter: 150 mm
- R410A refrigerant gas: 0,500 kg
- Article number: SCU16VFDHE-48
-
