SKU:
BP SCU12VFDHE-48
$ 10.175,13
1-2 weeks delivery time
-
+
The Frigomar SCU12VFDHE-48 is a 12,000BTU 48V DC self-contained unit combining compact design with energy-efficient cooling and heating, 670 W max input power, 12 A max current, and precise seawater and air flow control.
- Description
- Ask a Question
-

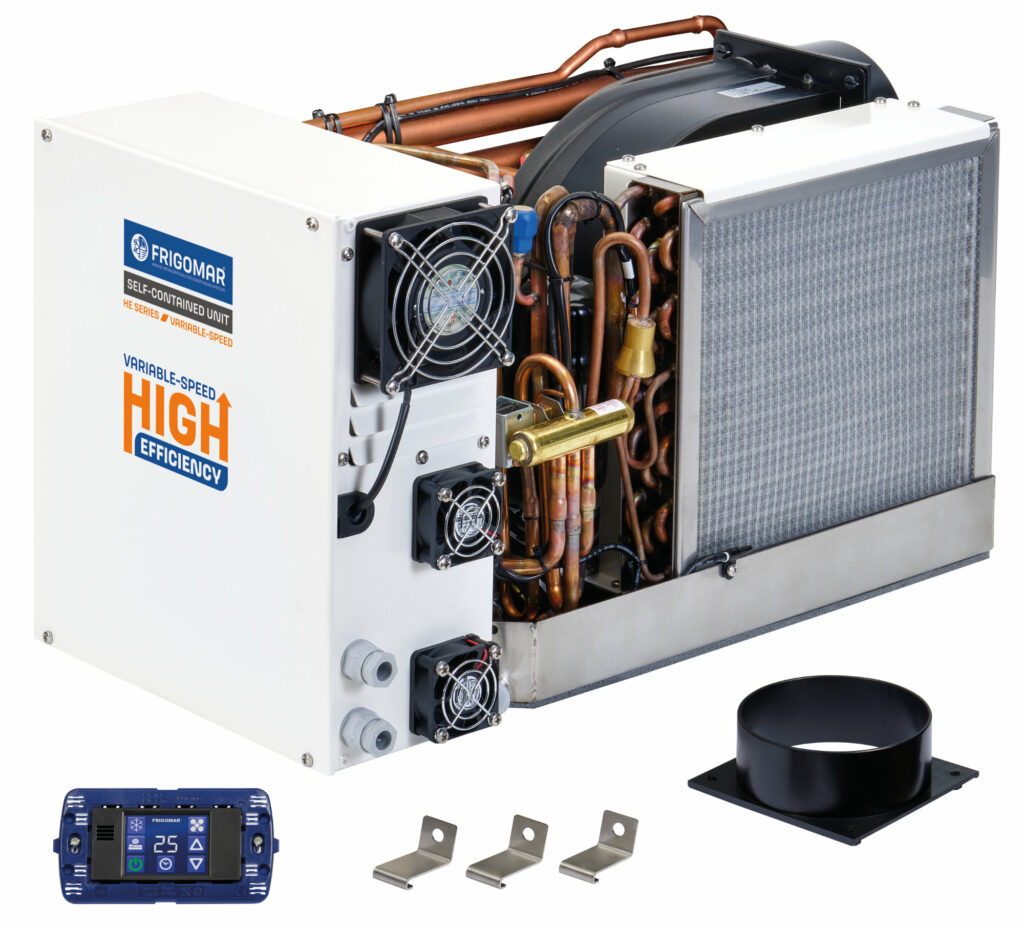

Frigomar SCU12VFDHE-48 - Self Contained Unit 12000BTU 48VDC High Efficiency
This compact self-contained unit provides high-efficiency cooling and heating for demanding environments. Designed for 48V DC systems, it ensures reliable performance with controlled energy consumption.
- Width: 500 mm
- Height: 336 mm
- Depth: 290 mm
- Weight (electrical panel included): 29,5 kg
- Electrical panel dimensions: 275 x 321,5 x 126 mm
- Voltage / phase / frequency: 48 V
- Maximum cooling/heating capacity: 12.000 BTU/h
- Maximum input power: 670 W
- Maximum current: 12 A
- Cooling capacity ECO mode*: 3.900 BTU/h
- Input power ECO mode*: 230 W
- Max seawater flow-pressure drop**: 1,3 m³/h - 4,7 m H2O
- Min seawater flow-pressure drop**: 1,2 m³/h - 4 m H2O
- Air exit duct diameter: 150 mm
- R410A refrigerant gas: 0,500 kg
- Article number: SCU12VFDHE-48
-
