SKU:
BP SCU12VFDHE-24
$ 10.280,47
1-2 weeks delivery time
-
+
The Frigomar SCU12VFDHE-24 is a high-efficiency 12,000BTU 24V DC self-contained unit, designed for marine applications, with 670 W max input power, 28 A max current, and detailed seawater flow and air duct specifications.
- Description
- Ask a Question
-

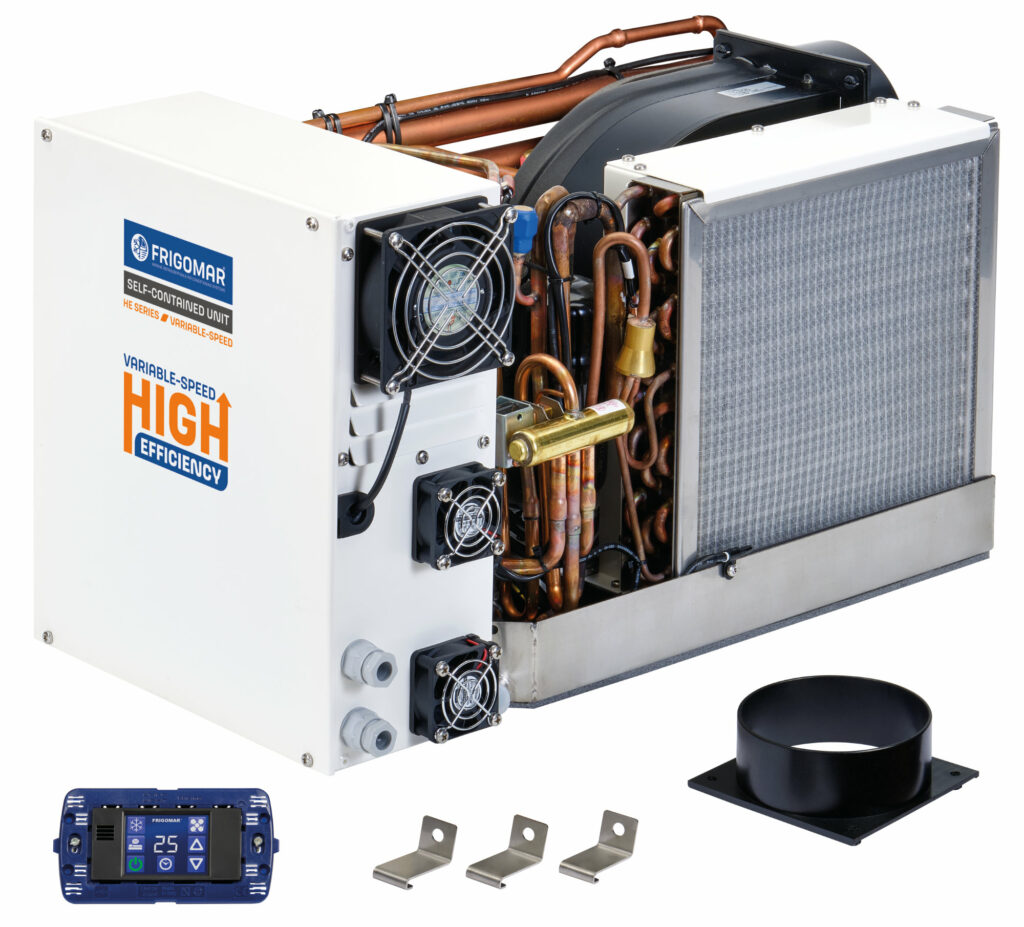

Frigomar SCU12VFDHE-24 - Self Contained Unit 12000BTU 24VDC High Efficiency
The SCU12VFDHE-24 is a 24V DC high-efficiency self-contained unit providing 12,000 BTU/h for heating and cooling. Compact and powerful, it is ideal for energy-conscious marine applications needing reliable performance.
- Width: 500 mm
- Height: 336 mm
- Depth: 290 mm
- Weight (electrical panel included): 29,5 kg
- Electrical panel dimensions: 275 x 321,5 x 126 mm
- Voltage / phase / frequency: 24 V
- Maximum cooling/heating capacity: 12.000 BTU/h
- Maximum input power: 670 W
- Maximum current: 28 A

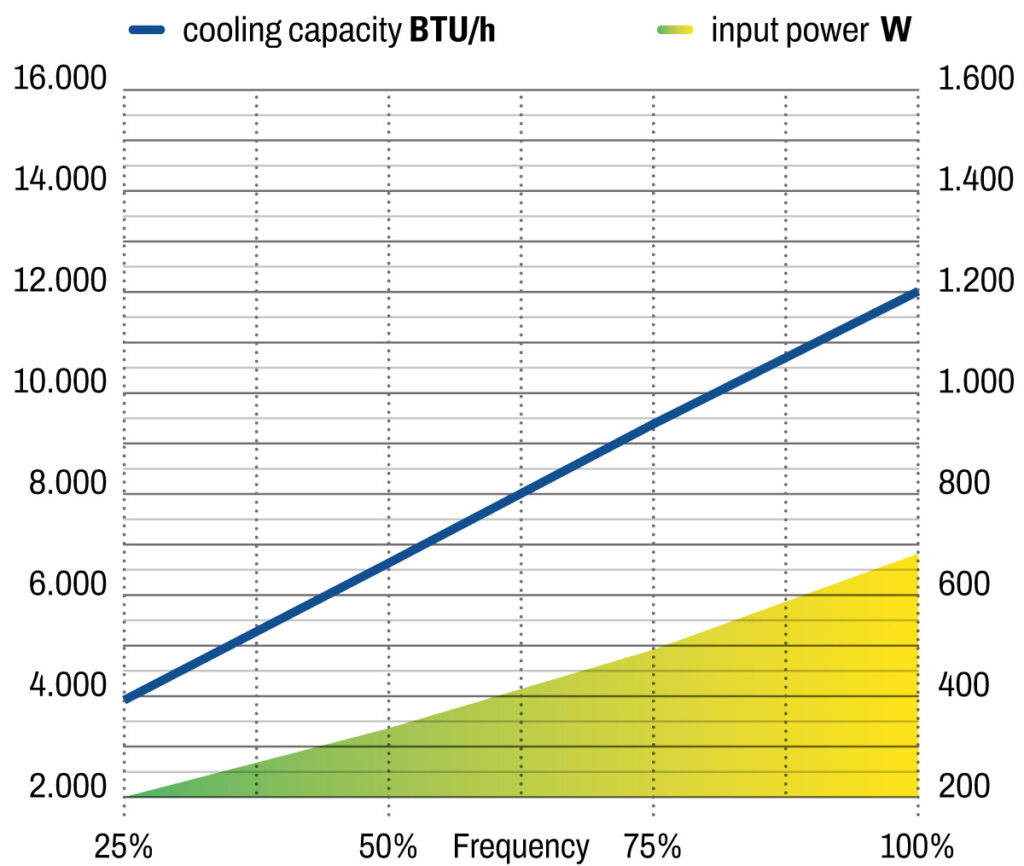

- Cooling capacity ECO mode: 3.900 BTU/h
- Input power ECO mode: 230 W
- Max seawater flow-pressure drop: 1,3 m³/h - 4,7 m H2O
- Min seawater flow-pressure drop: 1,2 m³/h - 4 m H2O
- Air exit duct diameter: 150 mm
- R410A refrigerant gas: 0,500 kg
- Article number: SCU12VFDHE-24
-
