SKU:
BP SCU12VFD-A
$ 7.366,74
1-2 weeks delivery time
-
+
The Frigomar SCU12VFD-A is a 12,000BTU BLDC self-contained unit for 115V AC single-phase systems, delivering powerful heating and cooling with ECO mode energy savings, suitable for marine installations with specific seawater and air flow requirements.
- Description
- Ask a Question
-

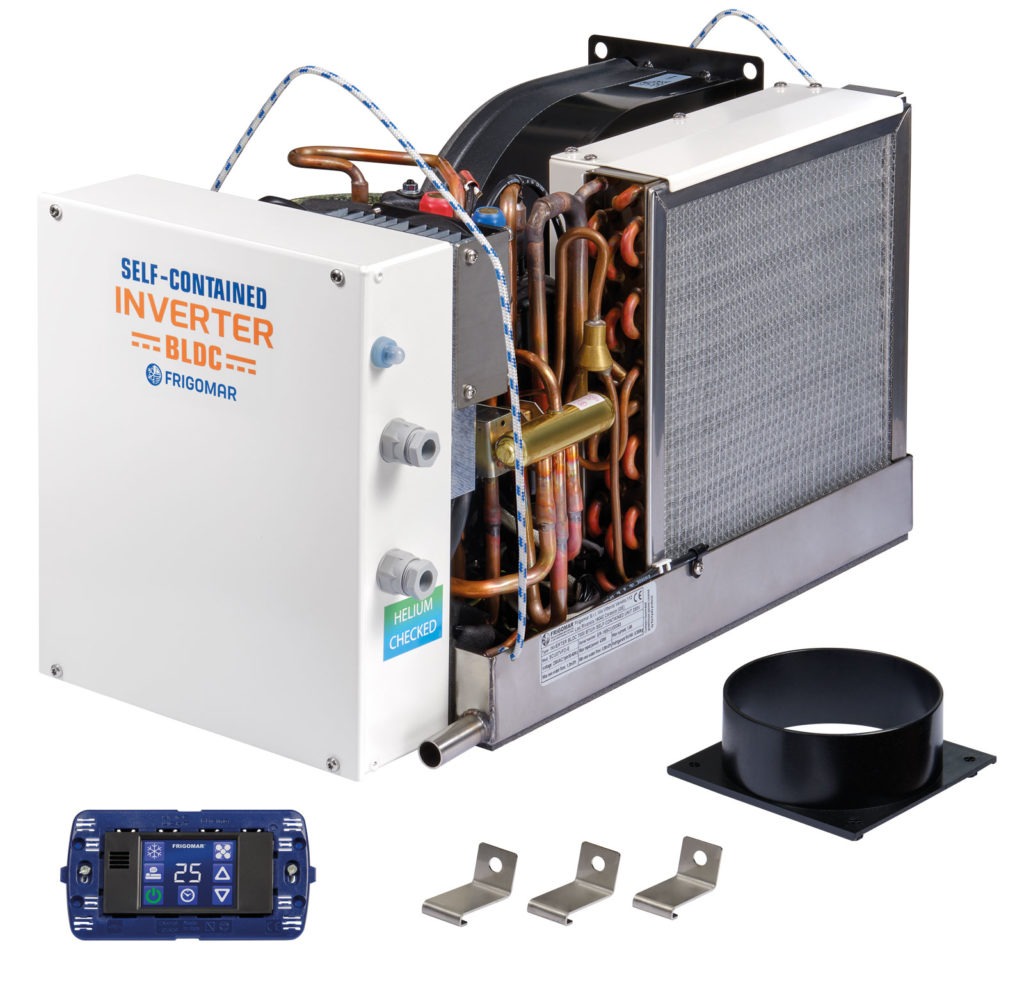

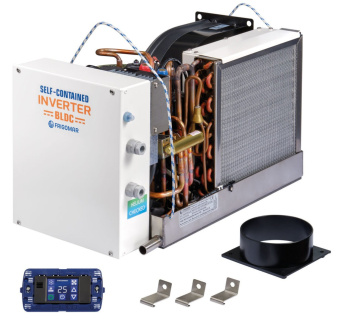

Frigomar SCU12VFD-A - Self Contained Unit BLDC 12000BTU 115V/1/60HZ
The SCU12VFD-A is a 12,000 BTU/h BLDC self-contained unit engineered for single-phase 115V AC systems. It delivers powerful cooling and heating with energy-saving ECO mode and supports marine installations requiring precise climate control.
- Width: 500 mm
- Height: 336 mm
- Depth: 290 mm
- Weight (including electrical box): 27 kg
- Remote electrical box dimensions: 235,5 x 278,5 x 76 mm
- Voltage / phase / frequency: 115 V / 1ph / 50-60 Hz
- Maximum cooling/heating capacity: 12.000 BTU/h
- Maximum input power: 750 W
- Maximum current: 6,9 A

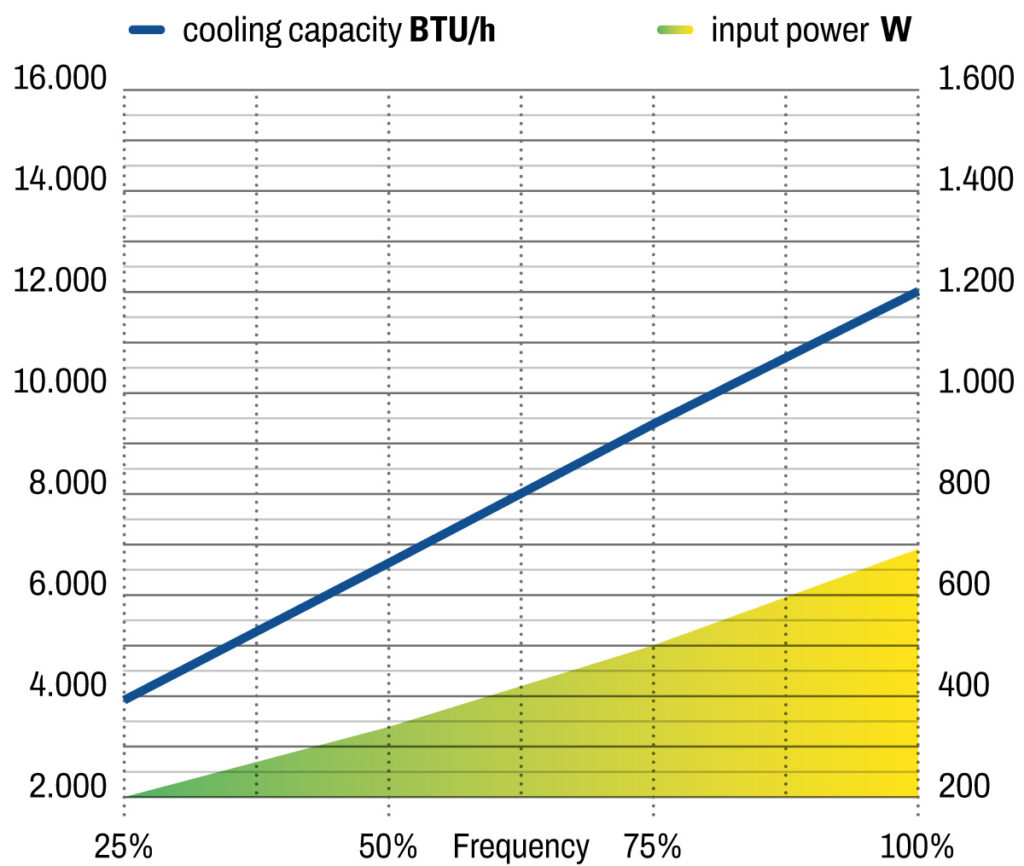

- Cooling capacity ECO mode: 3.900 BTU/h
- Input power ECO mode: 200 W
- Max seawater flow-pressure drop: 1,3 m³/h – 4,0 m H2O
- Min seawater flow-pressure drop: 1,2 m³/h – 3,6 m H2O
- Air exit duct diameter: 150 mm
- R410A refrigerant gas: 0,450 kg
- Article number: SCU12VFD-A
-
