SKU:
BP SCU10VFDHE-48
$ 9.553,31
1-2 weeks delivery time
-
+
The Frigomar SCU10VFDHE-48 is a 10,000BTU self-contained unit designed for 48V DC systems, offering high-efficiency cooling and heating, 640 W max input power, and optimized ECO mode performance for marine environments.
- Description
- Ask a Question
-

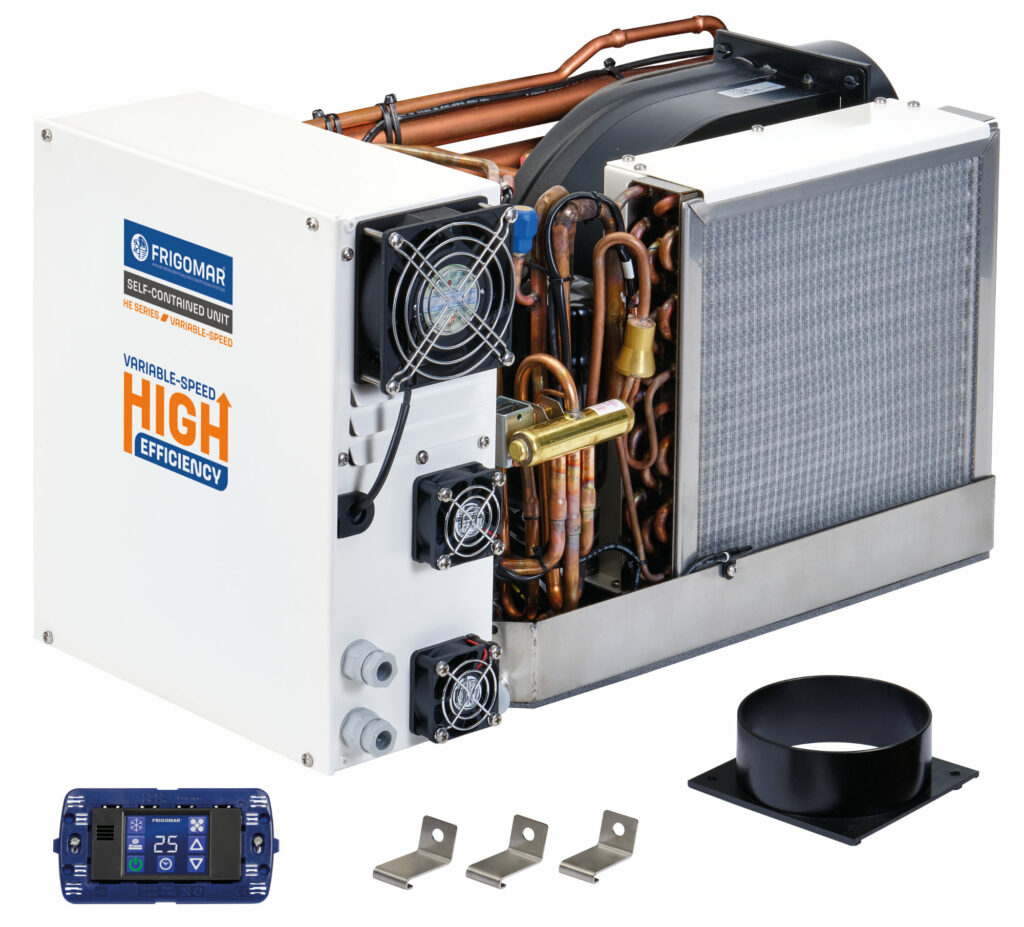

Frigomar SCU10VFDHE-48 - Self Contained Unit 10000BTU 48VDC High Efficiency
Designed for 48V DC systems, this self-contained unit delivers 10,000 BTU/h of cooling or heating efficiently. It combines compact design with reliable performance for marine and off-grid environments.
- Width: 433 mm
- Height: 282 mm
- Depth: 260 mm
- Weight (electrical panel included): 24,5 kg
- Electrical panel dimensions: 275 x 321,5 x 126 mm
- Voltage / phase / frequency: 48 V
- Maximum cooling/heating capacity: 10.000 BTU/h
- Maximum input power: 640 W
- Maximum current: 13,3 A

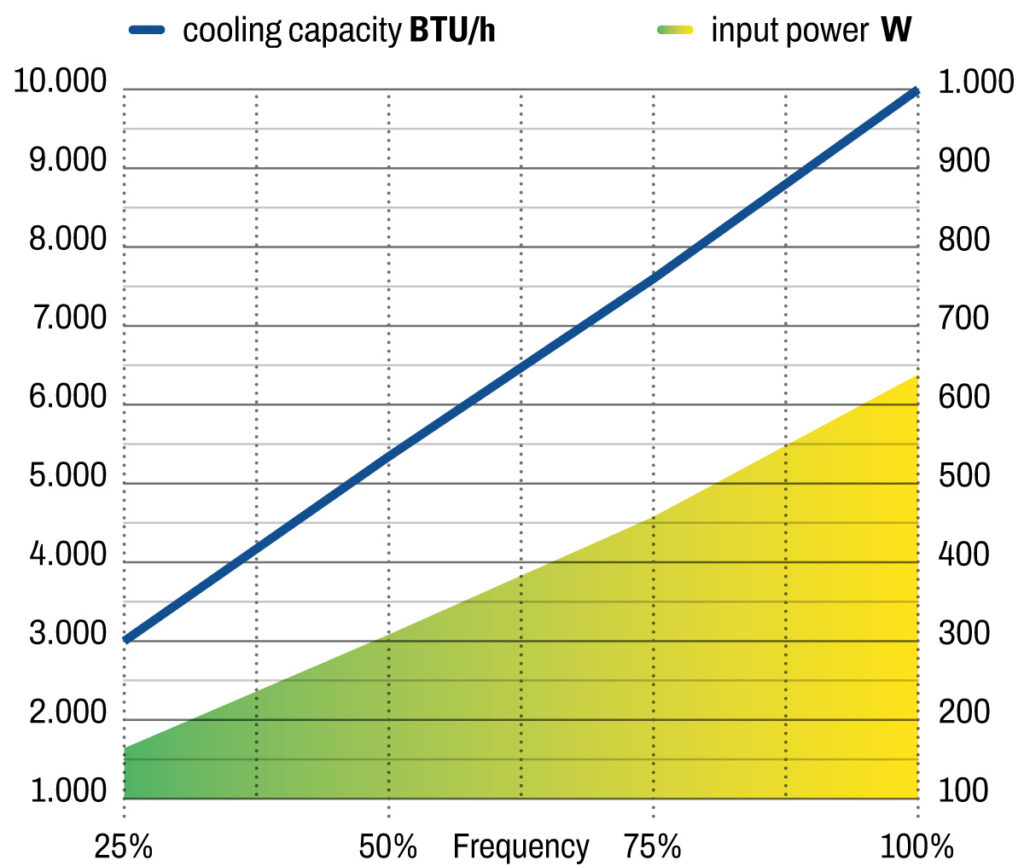

- Cooling capacity ECO mode: 3.000 BTU/h
- Input power ECO mode: 155 W
- Max seawater flow-pressure drop: 1,0 m³/h - 3,4 m H2O
- Min seawater flow-pressure drop: 0,8 m³/h - 2,2 m H2O
- Air exit duct diameter: 120 mm
- R410A refrigerant gas: 0,390 kg
- Article number: SCU10VFDHE-48
-
