SKU:
BP SCU10VFDHE-24
$ 9.655,25
1-2 weeks delivery time
-
+
The Frigomar SCU10VFDHE-24 is a 10,000BTU high-efficiency 24V DC self-contained unit for marine and mobile applications, providing reliable heating and cooling with 640 W max input power and detailed seawater and air flow specifications.
- Description
- Ask a Question
-

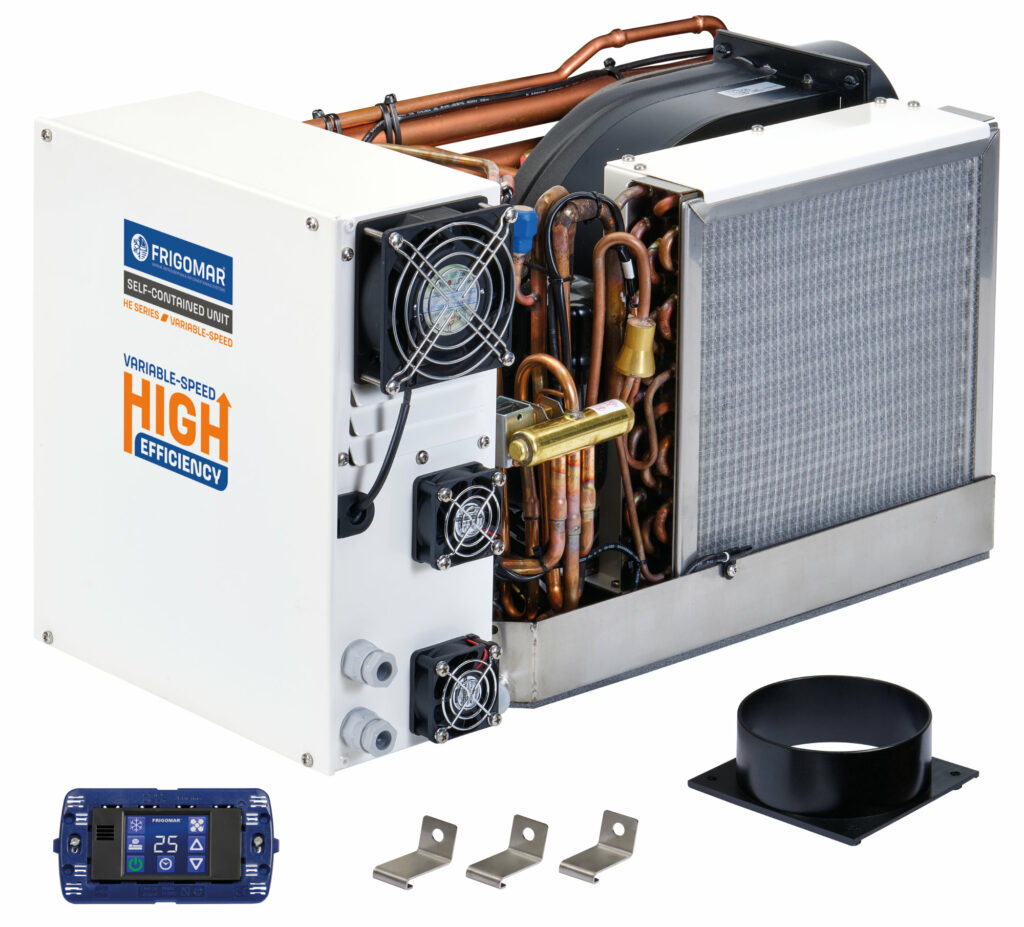

Frigomar SCU10VFDHE-24 - Self Contained Unit 10000BTU 24VDC High Efficiency
This high-efficiency self-contained unit provides reliable cooling and heating with 10,000 BTU/h capacity, designed to operate on 24V DC systems. Perfect for marine and mobile applications requiring energy-efficient climate control.
- Width: 433 mm
- Height: 282 mm
- Depth: 260 mm
- Weight (electrical panel included): 24,5 kg
- Electrical panel dimensions: 275 x 321,5 x 126 mm
- Voltage / phase / frequency: 24 V
- Maximum cooling/heating capacity: 10.000 BTU/h
- Maximum input power: 640 W
- Maximum current: 26,7 A

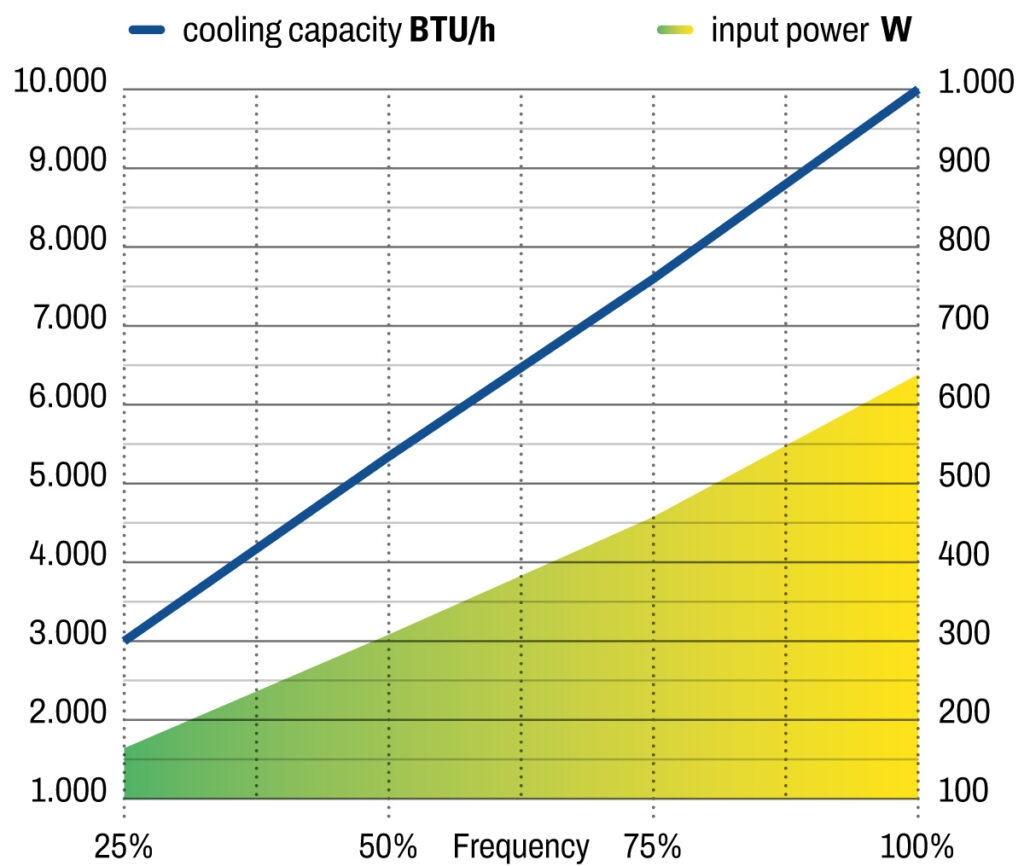

- Cooling capacity ECO mode: 3.000 BTU/h
- Input power ECO mode: 155 W
- Max seawater flow-pressure drop: 1,0 m³/h - 3,4 m H2O
- Min seawater flow-pressure drop: 0,8 m³/h - 2,2 m H2O
- Air exit duct diameter: 120 mm
- R410A refrigerant gas: 0,390 kg
- Article number: SCU10VFDHE-24
-
